2.75″ Dia. Heavy Load Rotary Stage, English

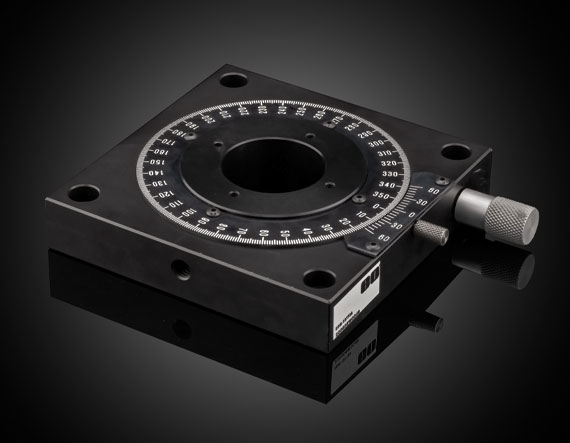

Product Details Normal Load Capacity of 25lb (11.3kg) for heavy duty applications Precision Worm Gear Drive Compatible with Metric and English 5″ Ball Stages Heavy Load Capacity Rotary Positioning Stages provide smooth, continuous adjustment over a full 360° travel range. A precision worm gear drive allows exact angular positioning of the rotation stage, and a position locking knob allows the stage to be positively locked in place. This heavy duty rotation stage offers a 2.75″ diameter stage with a calibrated dial and ±60 arcminute Vernier scale. Heavy Load Capacity Rotary Positioning Stages can be combined with metric and English stages that have mounting holes on 4.0″ centers (5″ ball stages) for multi-axis set ups. These stages have a load capacity of 25lb/11.3kg for heavy duty applications. Specifications General Type: English Physical & Mechanical Properties Type of Movement: Rotary Stage Size (mm): 120.7 x 120.7 Travel (°): 360 Center Hole: 1.5″ Dia. Thru Construction: Aluminum Top and Base; Steel/bronze Worm Gear Drive Gear Drive Ratio: 120:1 Increments (arcmin): 6 (Vernier) Load Capacity, Normal (lbs): 25 Weight (lbs): 2 Table Diameter (inches): 2.75 (69.8mm) Hardware & Interface Connectivity Type of Drive: Worm Gear Threading & Mounting Mounting Threads: (4) 10-32 on 2.0″ Dia. B.C. Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
