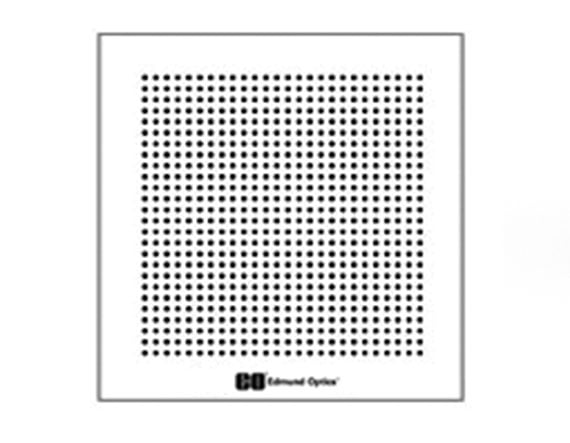

2″ x 2″ 0.0625mm Dot, Low Reflect Grid Distortion Target

Product Details Diffuse Reflectance Treatment Mimics Ceramic Targets Chrome Pattern on Substrate No Glare with On or Off Axis Lighting Perfect for Front Illuminated Measuring Diffuse Reflectance Grid Distortion Targets have been treated to create a surface that diffusely reflects light back, avoiding glare across the image surface. Using these targets, one can easily determine the precise amount of distortion present in an image. The dot center can be calculated using blob analysis in measurement software and calculated against the standard to remove distortion from the image. Diffuse Reflectance Grid Distortion Targets can be used with a wide variety of lenses, from wide-angle to telephoto. The targets are offered in 2 substrate sizes and 3 dot frequencies. Specifications General NIST Certification: No Physical & Mechanical Properties Dot Diameter (mm): 0.0625 Dot Spacing (mm): 0.125 Pattern Size (mm): 25 x 25 Dimensions (inches): 2 x 2 ±0.04 Thickness (mm): 2.00 ±0.2 Center to Center Spacing Tolerance (μm): ± 1 Dot Diameter Tolerance (μm): ±3 Optical Properties Coating: Low Reflective Chrome Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Float Glass Regulatory Compliance RoHS 2015: Compliant × Reach 223: Compliant × Certificate of Conformance: View ×
