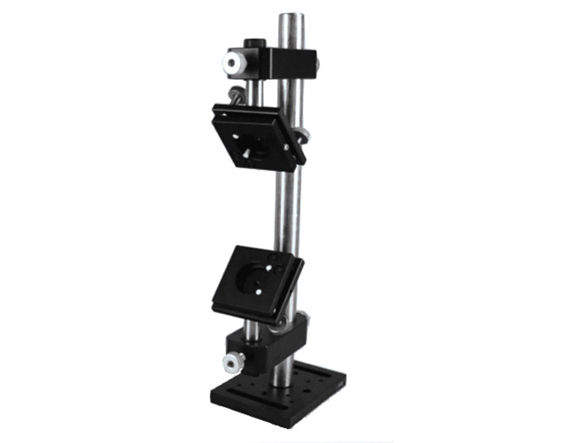

20.0mm Beam Steering Assembly

Product Details Ready to Use Beam Steering Assembly High Resolution 100 TPI Kinematic Mounts Available with 20mm Post for Higher Stability Beam Steering Assemblies are specifically suited for numerous applications in laser holography, interferometry and other exacting set-ups and systems requiring precise redirection of an optical beam. The 12.7mm Beam Steering Assembly comprises a slotted base, suitable for attachment to metric and imperial bench plates, a main 300mm post and two 100 TPI kinematic mounts with 6° tilt range, suitable for 1″ or 25mm diameter optics. The kinematic mounts can be moved vertically and can also be rotated 360° around the main post. The 20mm Beam Steering Assembly is designed for applications that require a higher level of stability and feature a larger slotted base than its 12.7mm counterpart; it includes a 20mm main post and heavy duty cross clamps. Mirrors are held in place with an #8 set screw. Specifications General Type: Adjustable – Beam Steering Type of Optics: Circular Range: 360° Horizontal, 6° Tilt Physical & Mechanical Properties Construction: Black Anodized Aluminum & Stainless Steel Post Diameter (mm): 20.0 Threading & Mounting Size of Compatible Optics (mm): 25.0 – 25.4 Regulatory Compliance Certificate of Conformance: View ×
