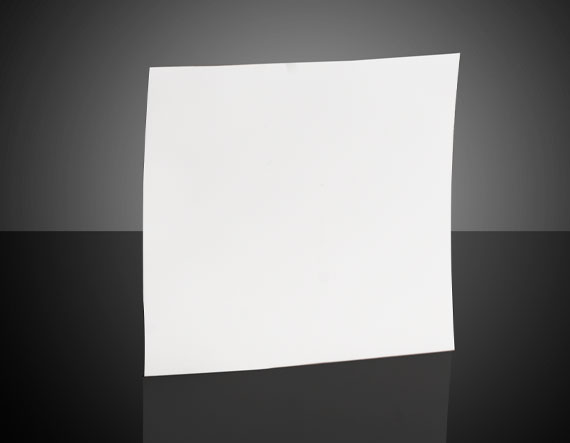

20 x 30cm Sheet of Optopolymer Optical PTFE, 0.5mm Thick, Adhesive Film

Product Details Optical PTFE Material with Lambertian Reflection High Reflectance from 250 – 2500nm High UV Stability and Chemical Resistance Optopolymer Diffuse Reflecting Film consists of optical polytetrafluoroethylene (PTFE) which achieves virtually ideal Lambertian reflectance properties and high reflectance from 250 to 2500nm. The thickness of the polymer layer influences both the flexibility and reflectance of the film with the 1.0mm film providing the best flexibility to reflectance ratio. A 0.5mm thickness provides the best flexibility with a small decrease in reflectance, and a 2.0mm thickness provides the highest reflectance with increased rigidity. Regardless of the thickness, the film can be easily cut to size using scissors and with the adhesive backing and can be tailored to fit any application. Optopolymer Diffuse Reflecting Film feature high UV stability and universal chemical resistance to minimize discoloration that would result in reflection loss. These reflecting films are ideal for calibration and contrast measurements, projection applications, lining UV sterilizers and photobioreactors, and as reflective diffusers. Specifications General Type: Standard Adhesive Dimensions (cm): 20 x 30 Physical & Mechanical Properties Dimensions (mm): 200 x 300 Thickness (mm): 0.50 Optical Properties Wavelength Range (μm): 0.25 – 2.5 Environmental & Durability Factors Operating Temperature (°C): -200 to +260 Regulatory Compliance Certificate of Conformance: View ×
