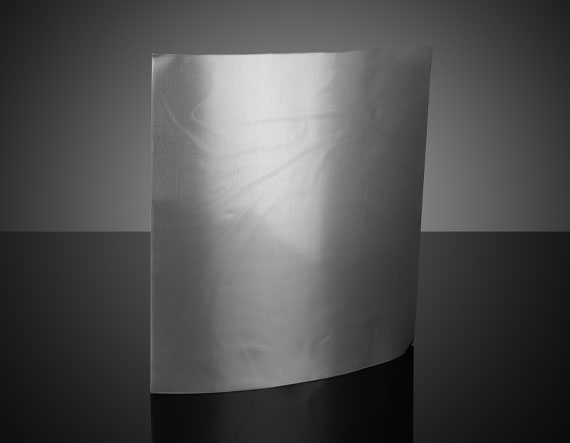

200 x 260mm Sheet of Diffuse Mirror Foil, No Adhesive

Product Details Highly Lambertian Reflectance 90% Average Total Hemispherical Reflectance Between 0.4 to 17µm Standard, Low Outgassing, and No Adhesive Options Available Acktar Diffusive Mirror Foils features an average Total Hemispherical Reflection exceeding 90% from 0.4 to 17µm wavelengths. These foils are available in 20 x 26cm or 20 x 500cm sheets, with either standard, low outgassing, or no adhesive options. Engineered to be flexible and lightweight, these foils maintain consistent performance over a wide range of temperature and humidity levels. Acktar Diffusive Mirror Foils feature a nearly ideal Lambertian, diffuse reflectance across a broad spectral range, with a flat response in the VIS, NIR, and IR spectra. These foils are 100% inorganic and are PFAS substance free, making them ideal for laboratory, clean room, vacuum, and space applications. Note: Please contact us for more information on other forms, such as rolls, tapes, or die-cuts. Specifications General Type: No Adhesive Model Number: DM-20X26-0 Reflection (%): >90 Physical & Mechanical Properties Dimensions (mm): 200 x 260 Foil Thickness (μm): 100 Adhesive Thickness (μm): 60 Optical Properties Coating: ACKTAR DIFFUSIVE MIRROR Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Stainless Steel Coating Thickness (μm): <5 Wavelength Range (μm): 0.4 - 19 Environmental & Durability Factors Operating Temperature (°C): -196 to +350 Abrasion Resistance: Moderate Regulatory Compliance Certificate of Conformance: View ×
