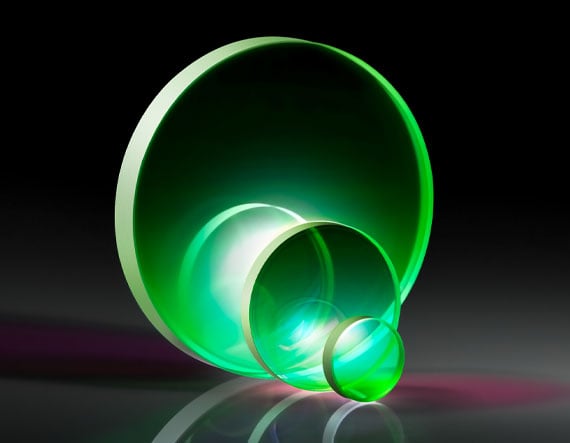

2000nm Laser Line Mirror, 45° AOI, 12.7mm Dia., 6.35mm Thick

Product Details >99.8% Reflectivity at 2µm 99.5% Average Reflectivity in the 1900 – 2200nm Range High Laser Damage Threshold Wide Range of Laser Line Mirrors Options Available TECHSPEC 2µm Laser Line Mirrors are designed with an absolute reflectivity of >99.8% at 2µm at a 45° angle of incidence. These mirrors are manufactured from high quality fused silica and are designed for use with high power laser sources. Available in standard 12.7, 25.4, and 50.8mm sizes, these mirrors can be easily integrated into existing laser systems. TECHSPEC 2µm Laser Line Mirrors feature λ/10 surface flatness and 10-5 surface quality to ensure reduced scattering in sensitive laser applications. These mirrors are ideal for applications including medical surgery, dermatology, laser doppler velocimetry (LDV), and remote sensing. Specifications General Type: Laser Mirror Physical & Mechanical Properties Thickness (mm): 6.35 ± 0.20 Diameter (mm): 12.70 +0.00/-0.10 Clear Aperture (%): 90 Back Surface: Commercial Polish Parallelism (arcmin): <3 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Surface Quality: 10-5 Coating: Laser Mirror (1900-2200nm) Wavelength Range (nm): 1900 - 2200 Surface Flatness (P-V): λ/10 Coating Specification: R abs 99.80% @ 2000nm @ 45° AOI R avg 99.5% @ 1900 - 2200nm @ 45° AOI Regulatory Compliance Certificate of Conformance: View ×
