200nm UV 1.6MP USB 3.1 Camera

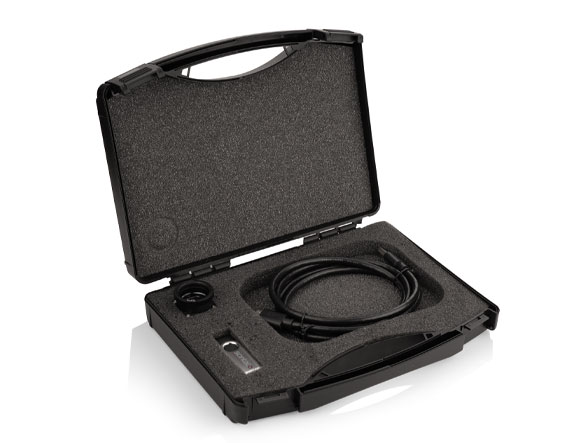

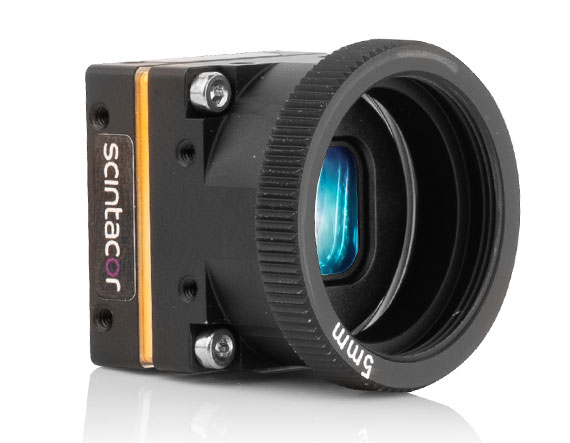

Product Details Ideal for a Variety of Ultraviolet (UV) Imaging Applications 200nm Designed Wavelength Phosphor Coated Camera Sensor Includes Camera, Cable, and Easy-to-Use Software NIR Versions Available CamUV 200nm UV USB 3.1 Cameras are designed with phosphor-based scintillators, allowing the camera to image in the ultraviolet (UV) at wavelengths as low as 200nm. This compact 27 x 27 x 14.5mm CS-mount camera offers a resolution of 1440 x 1080 pixels and a pixel size of 3.45μm, allowing this camera to ensure sharp, high-resolution imaging for even the most detailed applications. CamUV 200nm UV USB 3.1 Cameras ship with the camera, a cable, software on a USB drive, and a quick start guide to facilitate setup. These cameras are an ideal solution for a variety of applications, including UV laser beam profiling, machine vision, general UV detection, and product quality monitoring. Specifications Spectrum: UV General Type: UV Camera Manufacturer: Scintacor Physical & Mechanical Properties Dimensions (mm): 27 x 27 x 14.5 Weight (g): 20 Housing: Full Sensor Sensor Format: 1/2.9″ Resolution (Megapixels): 1.60 Frame Rate (fps): 60.00 Pixels (H x V): 1,440 x 1,080 Pixel Size, H x V (μm): 3.45 x 3.45 Sensing Area, H x V (mm): 4.97 x 3.73 Imaging Sensor: Sony IMX296 Type of Sensor: Progressive Scan CMOS Shutter Type: Global Pixel Depth: 10 bit Exposure Time: 29 µs to 30 sec Dynamic Range (dB): 66.03 Electrical Power Consumption (W): 2.2 Hardware & Interface Connectivity Interface: USB 3.1 Connector: USB 3.1 Power Supply: Power over USB GPIOs: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated bi-directional, 1 non-isolated input Synchronization: Hardware Trigger (GPIO) or Software Trigger Interface Port Orientation: Back Panel GPIO Connector Type: 7-pin JST Threading & Mounting Mount: CS-Mount Environmental & Durability Factors Operating Temperature (°C): 0 to 50 Storage Temperature (°C): -30 to +60 Regulatory Compliance Certificate of Conformance: View ×
