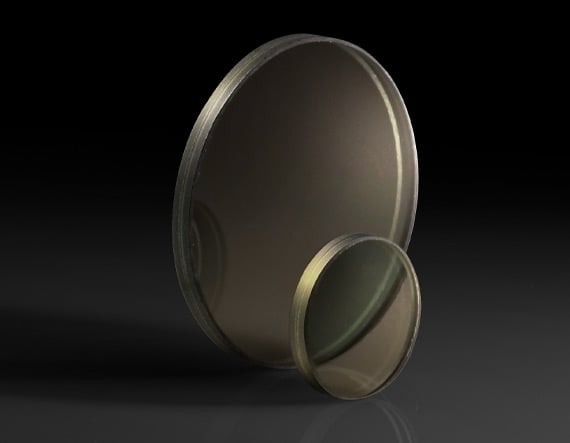

20mm Dia. Left-Handed Uncoated Glass Circular Polarizer (CP42HE)

Product Details Uncoated and Visible AR Coated Options Left-Hand Circular Polarization Increased Durability in Machine Vision Applications Glass Circular Polarizers (CP42HE) are designed for reducing surface reflection and glare, making them ideal for a variety of imaging applications. These circular polarizers feature a linear sheet polarizer and quarter-wave retarder laminated between two optical-grade glass windows. The window substrates provide increased rigidity and durability in industrial applications. An anti-reflection (AR) coating option provides increased transmission of visible light from 425 – 700nm. Glass Circular Polarizers (CP42HE) provide a left-handed polarization direction. Example imaging applications include machine vision, digital image processing, and photography. Specifications General Type: Left-Handed Circular Polarizer Physical & Mechanical Properties Diameter (mm): 20.00 Thickness (mm): 2.00 ±0.10 Dimensional Tolerance (mm): ±0.20 Construction: Laminated Glass Polarizing Film Optical Properties Coating: Uncoated Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Polymer Film CP42HE Laminated Between Glass Transmission (%): 42 ±2 Wavelength Range (nm): 400 – 700 Polarization Efficiency (%): >99.90 (nominal at 555nm) Environmental & Durability Factors Operating Temperature (°C): -40 to +80 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
