20mm Optotune Beam Shifter

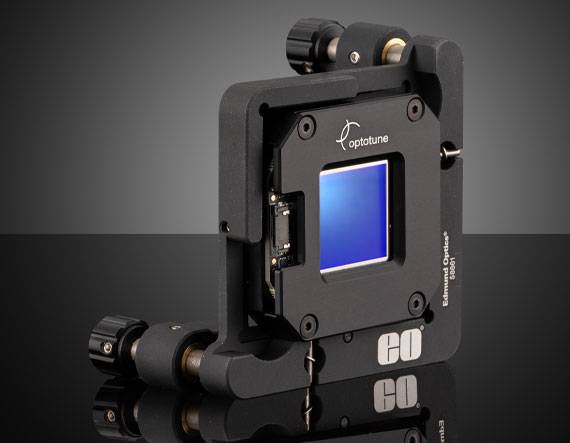

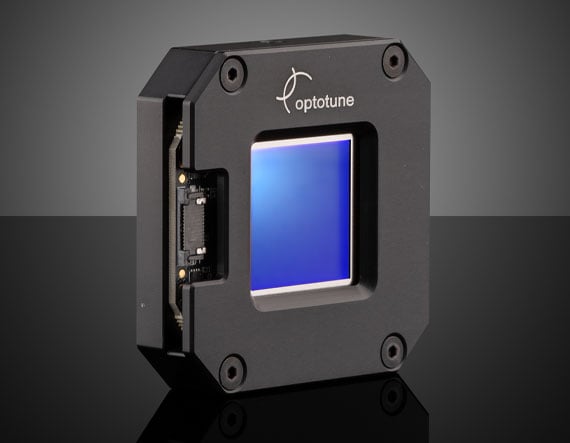

Product Details Increase Resolution up to 4X with High Angular Position Accuracy Fast Transition Times with Light-Weight and Compact Design Optotune ICC-4C-2000 Controller Required (#23-717) Optotune Beam Shifters accurately tilt a glass window in two axes, resulting in a lateral shift of light which facilitates a resolution increase up to 4X. Utilizing pixel shifting these windows make it possible to capture the full sensor resolution for each color channel by shifting an image a full pixel in X and Y. These windows are mounted in a compact aluminum bracket for easy integration into space constrained systems. Optotune Beam Shifters have an EEPROM containing calibration data for precise open-loop control and include a flex cable for quick connection with the Optotune ICC-4C-2000 controller, # 23-717 , sold separately. In addition to camera and projection systems, these windows are ideal for non-imaging applications such as optical fiber-coupling, 3D printing, and metrology. Specifications General Rise Time (ms): 1.3 (typical) Settling Time (ms): 4 (typical) Physical & Mechanical Properties Dimensions (mm): 50.8 x 50.8 x 12 Weight (g): 53 Optical Properties Coating: BBAR (400-680nm) Scan Angle (°): 0.4 (in x and y) Wavelength Range (nm): 400 – 680 Transmission (%): >98% @ 400 – 680nm (0-34° AOI) Transmitted Wavefront Error, RMS: <80nm Hardware & Interface Connectivity Connector: 6-pin FPC Regulatory Compliance Certificate of Conformance: View ×
