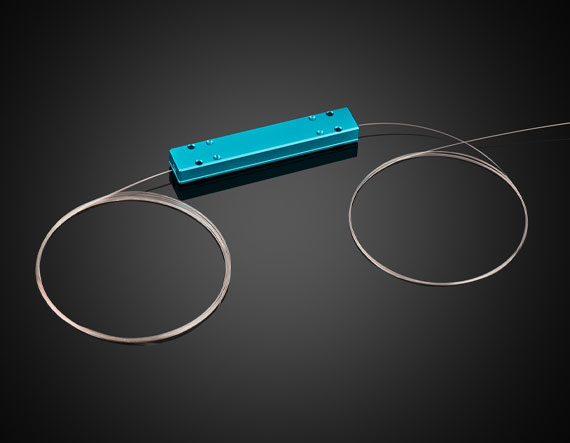

(2+1)x1 Fiber Pump and SM Combiner

Product Details Combines Laser Pump Sources and One Signal into One Output Fiber Wavelength Insensitive with High Power Transfer Efficiency Preservation of Modal Content Multimode Fiber Pump and Signal Combiners integrate high-power pump lasers and low-power signal lasers into a single optical fiber, ensuring efficient energy transfer, brightness preservation, and excellent optical performance. Designed for easy system integration, the combiners support compact packaging and seamless incorporation into fiber laser and amplifier systems. Multimode Fiber Pump and Signal Combiners include a heat sink package and a built-in port for temperature monitoring. These combiners are ideal for co- and counter-pump configurations and for fiber laser and laser power amplifier applications in industrial, military, medical, and telecommunications markets. Note: Contact us for custom configuration options as these combiners can be tailored to support a wide range of power levels, input configurations, and fiber types. Specifications General Fiber Cable Type: Signal Input/Output Fiber: 10/130 SM double cladding fiber Pump Fiber (1) (2): 105/125 MM fiber Physical & Mechanical Properties Length of Fiber (m): 1 Optical Properties Signal Wavelength Range (nm): 1040 – 1080 Pump Wavelength Range (nm): 800 – 1000 Return Loss (dB): >45 Numerical Aperture (NA) Range: Double-Cladding Signal Fibers: NA = 0.08 / 0.46 Multimode Pump Fibers: NA = 0.22 Performance Pump Transmission Efficiency (%): >92 Handling Power (Per Port): 50 Hardware & Interface Connectivity Insertion Loss (dB): <0.2 (Typ) Environmental & Durability Factors Operating Temperature (°C): -5 to +70 Storage Temperature (°C): -40 to +85 Regulatory Compliance Certificate of Conformance: View ×
