22mm CA, 35mm FL, Mounted MgF 2 Coated Achromatic Doublet Lens

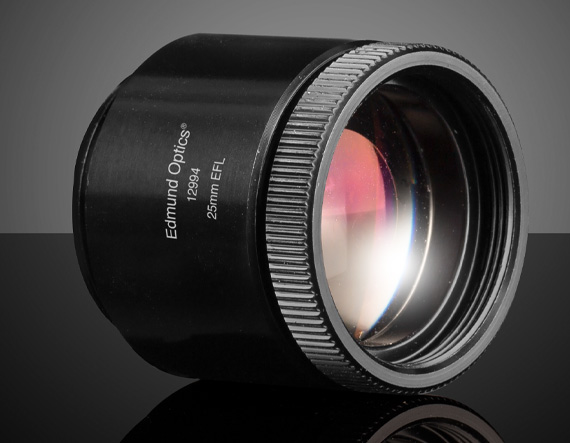

Product Details Pre-mounted in Engraved C-Mount Housings Simplify Integration into Optical Systems Less than 1.75% Reflectance per Surface @ 400 – 700nm Also Available Unmounted TECHSPEC Mounted MgF 2 Coated Achromatic Lenses feature our TECHSPEC MgF 2 Coated Achromatic Lenses pre-mounted in C-Mount housings to simplify their integration into optical systems. Designed for the visible spectrum, these lenses are coated with a single layer MgF 2 anti-reflection coating to increase light transmission. Each C-Mount housing is laser engraved with the stock number and focal length for easy identification. TECHSPEC Mounted MgF 2 Coated Achromatic Lenses are ideal for C-Mount optical systems that require on-axis spherical and chromatic aberrations to be eliminated. Specifications General Type: Achromatic Lens Lens Included: #32-319 Physical & Mechanical Properties Edge Thickness ET (mm): 9.47 Total Length (mm): 28.2 Extension Length (mm): 24.2 Clear Aperture CA (mm): 22.0 Bevel: Protective as needed Optical Properties Effective Focal Length EFL (mm): 35.00 Focal Length Specification Wavelength (nm): 587.6 Focal Length Tolerance (%): ±2 Back Focal Length BFL from Housing (mm): 22.19 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More S-BAH11 / N-SF10 f/#: 1.4 Numerical Aperture NA: 0.36 Coating: MgF 2 (400-700nm) Coating Specification: R avg ≤1.75% @ 400 – 700nm Wavelength Range (nm): 400 – 700 Radius R 1 (mm): 24.47 Radius R 2 (mm): -16.49 Radius R 3 (mm): -131.65 Surface Quality: 40-20 Power (P-V) @ 632.8nm: 1.5λ Irregularity (P-V) @ 632.8nm: λ/4 Threading & Mounting Mount Included: #56-354 Mount Diameter (mm): 30.0 Thread Type: C-Mount Regulatory Compliance Certificate of Conformance: View ×
