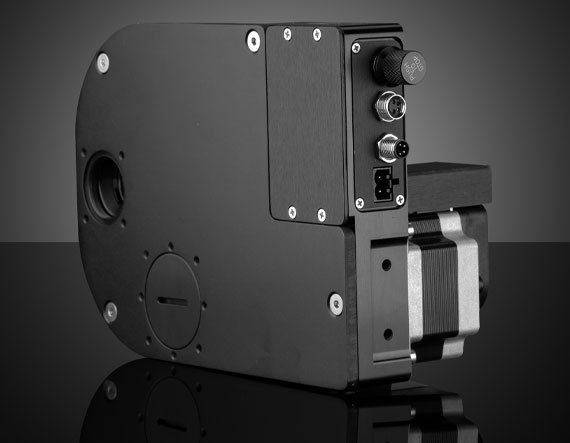

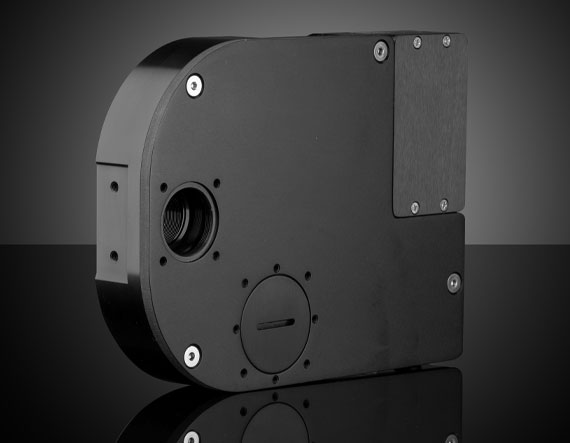

25.0/25.4mm Optic Dia., 10 Position Motorized Filter Wheel, Integrated Controller, Rotary Encoder

Product Details Built-In Controller for Easy Configuration Interchangeable Filter Holder For 10X 25 mm Diameter Optics Free Robust Software Available Zaber Motorized Filter Wheels are computer controllable via USB or RS-232 connection or with an indexed knob that provides smooth manual control in both directions. Featuring C-mount input and output threads, these filter wheels easily integrate with a variety of cameras, lasers, and additional mechanics. The filter wheels can be easily operated to move at constant speed (velocity mode) or at constant positional increments (index mode), simplifying system integration. Zaber Motorized Filter Wheels are easily daisy chained, feature a stepper motor with a built in encoder, and include interchangeable filter holders. These filter wheels are ideal for use with microscopes, cameras, and video systems where multiple filter options are required. The free intuitive software available from Zaber allows for computerized control of all computer compatible Zaber products. Compatible with serial ports, USB, Ethernet, or IoT, this software provides excellent functionality to connected devices while granting the ability to easily change between or program each individually. A link to the software can be found here or in the downloadable documents section attached to the parts. Specifications General Model Number: Zaber X-FWR06A-E02-FH0625 Encoder: Yes Encoder Type: Rotary quadrature encoder Physical & Mechanical Properties Weight (kg): 1.508 Travel (°): 360 Repeatability (°): <0.1 Backlash (°): < 0.19° Accuracy (°): 0.4 Unidirectional Speed (°/s): 0.006542 Type of Movement: Rotary Encoder Resolution: 400 CPR Electrical Maximum Operating Current (mA): 650 Hardware & Interface Connectivity Power Supply: Not included, see the Accessories tab for recommended 24 to 48V Power Supply Type of Drive: Two Phase Stepping Motor Threading & Mounting Size of Compatible Optics (mm): 25.00 - 25.40 Thickness of Compatible Optics (mm): 6.5 Environmental & Durability Factors Operating Temperature (°C): 0-50 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
