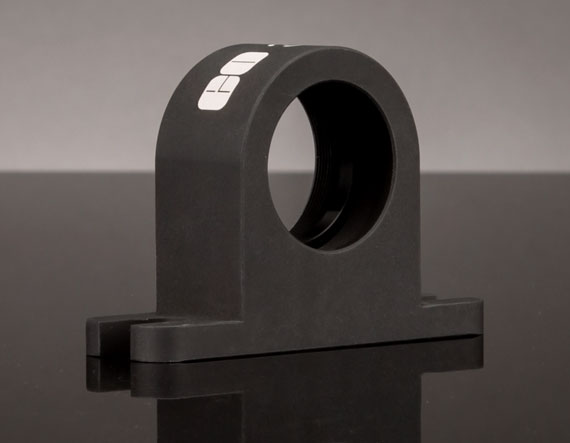

25.0/25.4mm Optic Dia., Side Flange Direct Mount

Product Details Direct to Breadboard Mounting 25.4mm Centerline Height Compact Form Factor TECHSPEC Compact Direct Mounts enable direct mounting to an optical table or breadboard. These mounts maintain a 25.4mm centerline height, which enables seamless integration from laboratory to OEM use. Available for 25.4mm and 12.7mm diameter optics or 25mm cube beamsplitters, these components provide a convenient all-in-one method for optic mounting. Our TECHSPEC Compact Direct Mounts eliminate the needless tolerance stack of conventional post and post holders, with <4 arcmin perpendicularity from lens shelf to base. Direct mounts are ideal for use with TECHSPEC Kinematic Mounts and the 25.4mm centerline height and aluminum construction offers mounting for integration into the most demanding applications. Specifications General Type: Fixed Type of Optics: Circular Note: Side Flange Physical & Mechanical Properties Clear Aperture CA (mm): 22.0 Construction: Black Anodized Aluminum 1" Optical Axis Height: Yes Centerline Height (mm): 25.4 Threading & Mounting Size of Compatible Optics (mm): 25.0 - 25.4 Thickness of Compatible Optics (mm): 1.0 - 14.0 Barrel Thread: ID1 (1.035" x 40 TPI) Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
