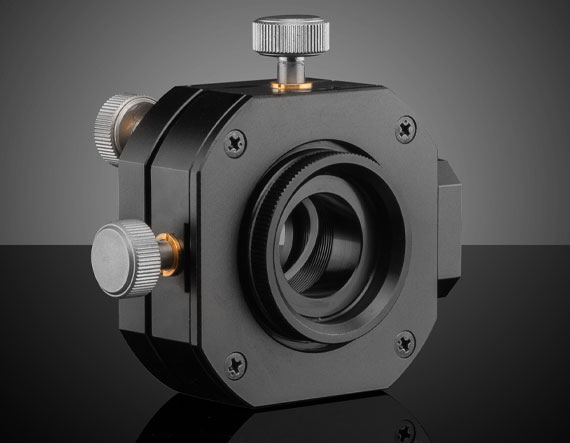

25.0/25.4mm Optic Dia., X-Y-Z Translating Optic Mount

Product Details 2-Axis, 3-Axis, and 5-Axis Adjustable Mounts Available Options for 12.5mm (0.5”), 25mm (1”), and 50mm (2”) Dia. Optics M6 Mounting Threads Multi-Axis Adjustable Optic Mounts can adjust optic positioning along the X- and Y-axes, as well as through optional Z-axis and Tip/Tilt adjustment. Compact packaging allows for fine alignment adjustments without the additional use of bulkier stages. Multi-Axis Adjustable Optic Mounts are ideal for alignment adjustments in prototyping and precision laboratory benchtop optical systems. These mounts include M6 mounting threads making them compatible with our standard Metric Stainless Steel Mounting Posts . A retainer ring and Delrin ring are used together to secure the optic without damaging its surface. Specifications General Type: Adjustable – Linear (XYZ) Type of Optics: Circular Physical & Mechanical Properties Clear Aperture CA (mm): 22.0 Outer Diameter (mm): 65.0 Thickness (mm): 34.00 Travel (mm): ±2.0 in X and Y, ±1.5 in Z Weight (g): 240 Construction: Black Anodized Aluminum Threading & Mounting Size of Compatible Optics (mm): 25.0 – 25.4 Thickness of Compatible Optics (mm): 11.0 (Max) Compatible Post: M6 x 1.0 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 247: Contains SVHC(s) ×
