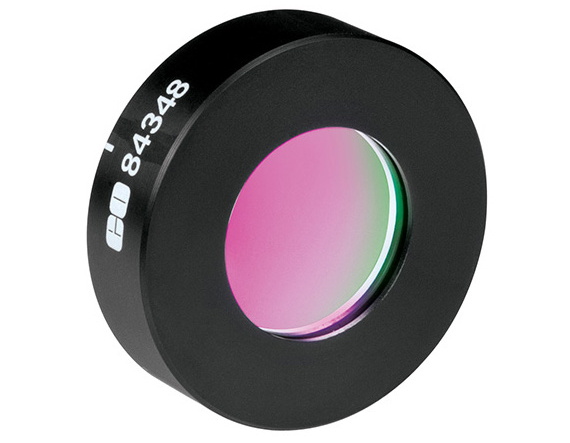

25/25.4mm Optic Cell

Product Details Designed for use with the TECHSPEC C-Mount Filter/Polarizer Holder #84-345 (M6) or #84-346 (¼/20). Optic Cells Can Mount Square or Circular Optics Complete Holder Requires One Housing and One Optic Cell Available with M6 or ¼-20 Tapped Holes for Post Mounting The TECHSPEC C-Mount Filter/Polarizer Holder is designed to mount a range of square or circular optical components into C-mount compatible systems . A housing and an optic cell are needed to build a complete TECHSPEC C-Mount Filter/Polarizer Holder. To ensure adaptability with different posts, housings are available with M6 or ¼-20 tapped holes. Specifications General Function: Optic Mount (Fixed) Type of Optics: Square/Circular Dimensions of Compatible Optics (mm): 25.0/25.4 Sq. Physical & Mechanical Properties Clear Aperture CA (mm): 22.00 Total Length (mm): 11.5 Min. Thickness of Compatible Optics (mm): 0.50 Max. Thickness of Compatible Optics (mm): 7.80 Threading & Mounting Diameter of Compatible Optics (mm): 25.0 – 25.4 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
