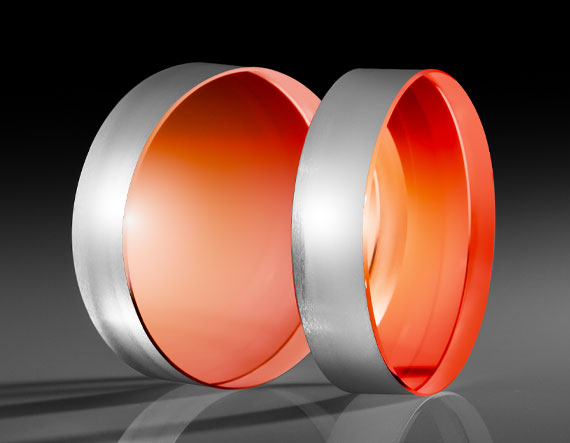

25.4mm Dia. 266, 355, 532, 1064nm 45°, Low Cost Laser Line Mirror

Product Details Nd:YAG Harmonic Wavelengths >97% Reflectivity at 266, 355, 532 and 1064nm Excellent Cost to Performance Ratio Nd:YAG Laser Line Mirrors and Low Cost Laser Line Mirrors Also Available Low Cost Nd:YAG Multi-Line Mirrors are cost-effective mirrors with excellent reflectivity at multiple Nd:YAG harmonic wavelengths. These mirrors feature fused silica substrates with >97% reflectivity at 266, 355, 532, and 1064nm.Featuring a 20 – 10 surface quality and an angle of incidence of 45°, these low-cost mirrors have an excellent cost to performance ratio in multi-line Nd:Yag applications. Low Cost Nd:YAG Multi-Line Mirrors are an ideal replacement for metallic coated mirrors in laser optical systems that require higher reflectivity. Specifications General Type: Laser Mirror Physical & Mechanical Properties Diameter (mm): 25.40 +0.0/-0.1 Thickness (mm): 5.00 ±0.25 Clear Aperture (%): >90 Parallelism (arcmin): <3 Back Surface: Commercial Polish Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Coating: Laser Mirror (266, 355, 532, 1064nm) Coating Type: Dielectric Coating Specification: R abs >98% @ 266, 355, 532nm, R abs >97% @ 1064nm Design Wavelength DWL (nm): 266, 355, 532, 1064 Reflection at DWL (%): 98 Angle of Incidence (°): 45 Surface Flatness (P-V): λ/8 Surface Quality: 20-10 Regulatory Compliance Certificate of Conformance: View ×
