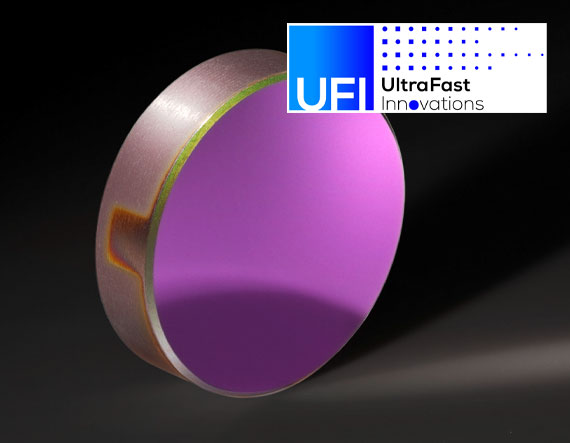

25.4mm Dia., 3200nm Highly Positive Dispersive Ultrafast Mirror

Product Details Designed for Dispersion Control, Pulse Compression, and Dispersion Compensation High-Reflectance Coatings for Demanding Laser Applications Optimized for Integration into Ultrafast Laser Systems UltraFast Innovations (UFI) Dispersion-Control Ultrafast Mirrors are designed for pulse compression and dispersion compensation in ultrafast laser systems. These mirrors offer high reflectance and dispersion control across a range of ultrafast laser applications. Options are available for UV, NIR, and mid-IR wavelengths, as well as different angles of incidence to meet the needs of different laser systems. UltraFast Innovations (UFI) Dispersion-Control Ultrafast Mirrors can be used in applications including laser compressors, chirped-pulse amplifier systems, and ultrafast beam transport. Custom sizes, wavelengths, and designs are available for specific laser system requirements. Specifications General Model Number: HD346 Physical & Mechanical Properties Diameter (mm): 25.40 +0.00/-0.05 Thickness (mm): 6.35 ±0.20 Clear Aperture (%): 80 Wedge Angle (arcmin): 10 Back Surface: Commercial Polish Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Coating: Highly-Positive Dispersive (2800-3600nm) Coating Type: Dielectric Coating Specification: R avg >99% @ 2800 – 3600nm (5° AOI, p-polarization) Wavelength Range (nm): 2800 – 3600 Design Wavelength DWL (nm): 3200 Angle of Incidence (°): 5 GDD Specification: 500fs 2 @ 2800 – 3600nm (5° AOI, p-polarization) Irregularity (P-V) @ 632.8nm: λ/10 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
