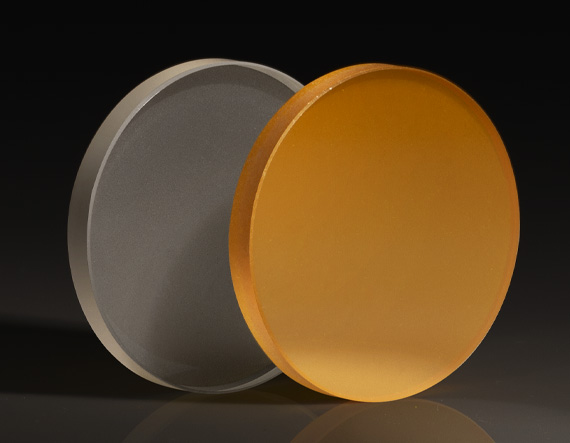

25.4mm Dia., 3mm Thick, ISP Optics ZnSe Infrared (IR) Diffuser | DIF2-IR-25-3

Product Details Even, Diffuse Surface Low Scatter Loss 0.3 – 12.0µm Spectral Range UV Fused Silica Ground Glass Diffusers Also Available ISP Optics Infrared (IR) Diffusers are useful for creating even intensity distribution of broadband IR light sources. These ground diffusers are polished on one side and sandblasted on the other side to produce a rough surface that will scatter light. These diffusers are available with either calcium fluoride (CaF 2 ) or Zinc Selenide (ZnSe) substrates. The CaF 2 substrate has a transmission range from 0.3 to 8.0 microns and the ZnSe substrate has transmission range from 0.6 to 12.0 microns. ISP Optics Infrared (IR) Diffusers are ideal for a variety of applications including FTIR systems, laser calibration systems, and illuminator diffusion. Specifications Type of Window: Crystal General Model Number: DIF2-IR-25-3 Type: IR Diffuser Note: Fine Grind first surface with a roughness (Ra) of ∼0.75 microns Physical & Mechanical Properties Diameter (mm): 25.40 +0.00/-0.13 Edges: Ground Thickness (mm): 3.00 ±0.13 Optical Properties Coating: Uncoated Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Zinc Selenide (ZnSe) Wavelength Range (nm): 600 – 12000 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 240: Compliant ×
