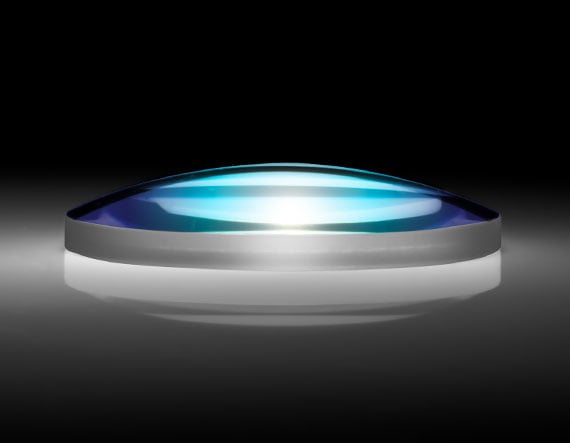

25.4mm Dia x 100mm FL, Uncoated Meniscus Lens

Product Details Positive Meniscus Lens Designs Minimize Spherical Aberration and Reduce Spot Sizes 350 – 2,200nm Wavelength Range Positive Meniscus Lenses are convex-concave lenses manufactured from N-BK7 optical glass and are designed to minimize spherical aberration and reduce spot sizes in focusing applications. When used to focus a collimated beam, the lenses should be oriented with the convex surface towards to light source to minimize spherical aberration. Combining a positive meniscus lens with another lens in a multi-element optical design will allow for a shortening of the focal length and an increase in the numerical aperture (NA) of a system without introducing significant spherical aberrations. Positive Meniscus Lenses are available with focal lengths ranging from 100 to 300mm in 25.4mm diameters sizes. allowing for easy integration into benchtop systems. Specifications General Type: Meniscus Lens Physical & Mechanical Properties Diameter (mm): 25.40 +0.00/-0.10 Center Thickness CT (mm): 3.60 ±0.10 Edge Thickness ET (mm): 1.89 Clear Aperture CA (mm): 22.86 Centering (arcmin): <3 Optical Properties Effective Focal Length EFL (mm): 100.00 @ 587.6nm Back Focal Length BFL (mm): 95.72 @ 587.6nm Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-BK7 f/#: 3.94 Numerical Aperture NA: 0.13 Coating: Uncoated Design Wavelength DWL (nm): 587.6 Radius R 1 (mm): 28.67 Radius R 2 (mm): 61.628 Surface Quality: 40-20 Power (P-V) @ 632.8nm: 3 Rings Irregularity (P-V) @ 632.8nm: 0.5 Rings Regulatory Compliance Certificate of Conformance: View ×
