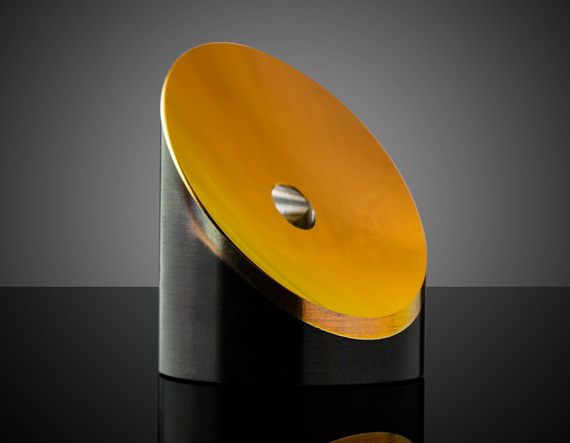

25.4mm Dia. x 25.4mm EFL, Protected Gold 90° OAP Mirror with Alignment Through Holes

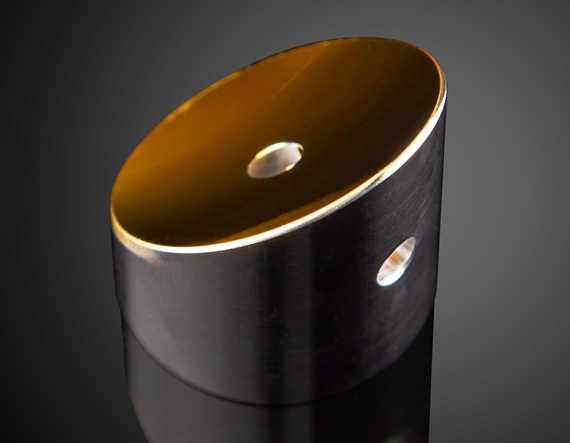

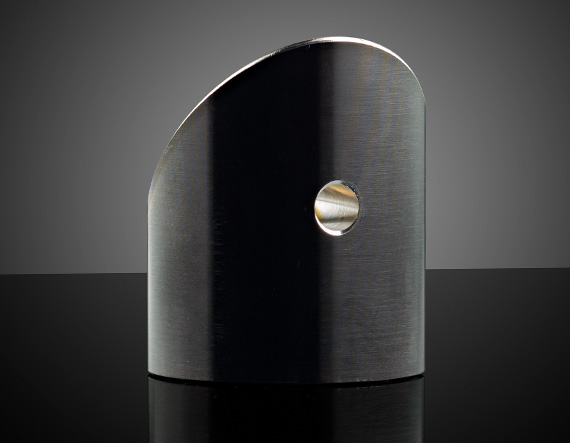

Product Details Through Holes Parallel to Focused and Collimated Beams Range of Metallic Coatings Available <50Å RMS Surface Roughness TECHSPEC Off-Axis Parabolic (OAP) Mirrors with Alignment Through Holes are designed with two through holes, one that aligns with the focal point of beams focused off the parabolic surface and the second parallel to beams collimated by the surface. The hole placements allow for two beams to hit a target or sample simultaneously, which is a technique used to take pump-probe measurements. These OAPs feature aluminum substrates and are diamond turned with a surface roughness of <50Å RMS that minimizes scatter. TECHSPEC Off-Axis Parabolic Mirrors with Alignment Through Holes are available coated with protected gold, protected aluminum, or UV enhanced aluminum for integration into applications requiring high reflectance from the ultraviolet (UV) to the infrared (IR). Note: Please contact us for custom options if your application requires a standard OAP Mirror with a through hole. Specifications General Type: Off-Axis Parabolic Mirror Physical & Mechanical Properties Diameter (mm): 25.40 +0.00/-0.10 Through Hole Diameter (mm): 4.1 Surface Roughness (Å): <50 RMS Through Hole Orientation: 1 x Parallel to Focused Beam 1 x Parallel to Collimated Beam Y Offset (mm): 25.40 Optical Properties Effective Focal Length EFL (mm): 25.40 Focal Length Tolerance (%): ±1 Parent Focal Length PFL (mm): 12.7 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Aluminum 6061-T6 Coating: Protected Gold (700-10000nm) Coating Type: Metal Coating Specification: R avg >96% @ 700 – 2000nm R avg >96% @ 2000 – 10,000nm Wavelength Range (nm): 700 – 10000 Off-Set Angle (°): 90 Surface Figure, RMS: λ/8 Surface Quality: 80-50 Radius of Curvature (mm): 25.40 Regulatory Compliance Certificate of Conformance: View ×
