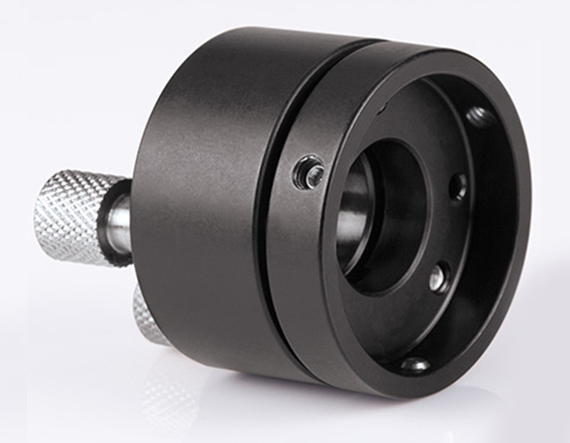

25.4mm Kinematic Mount

Product Details Available for a Range of Optical Components Anodized Aluminum Construction with Stainless Steel Screws 0.5mm Pitch Fine Adjustment Screw Fixed Optical Mounts Also Available Ideal for beam steering applications, TECHSPEC Cage System Adjustable Optical Mounts are used to integrate a variety of optical components into a TECHSPEC Cage System. Designed to fit within the inner diameter of 25mm or 30mm standard cage system plates , these optical mounts utilize set screws to secure optical components in place, providing the stability and adjustment needed for precision optical alignment. #85-695 25.4mm Kinematic Mount features a 12.7mm clear aperture and can be paired with #85-699 45° plate beamsplitter mount. Specifications General Function: Tip-Tilt Type of Optics: Circular Note: Accepts 25/25.4mm Diameter Optics Physical & Mechanical Properties Compatible Plate Inner Diameter (mm): 30.0 Inner Diameter (mm): 25.4 Construction: Black Anodized Aluminum Through Hole Diameter (mm): 12.7 Dimensions (mm): 30 Dia. Adjustment Screw Pitch (mm): 0.5 Travel (°): ±8 Tip/Tilt Threading & Mounting Size of Compatible Optics (mm): 25.0 – 25.4 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
