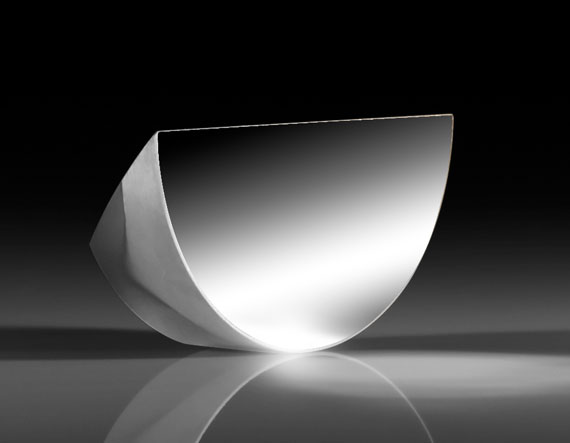

25.4mm Protected Silver λ/10 Knife-Edge Pickoff Mirror

Product Details Designed to Separate Two Beams Propagating Closely Next to Each Other 45° Bevel Coating Aperture Up to the Knife-Edge Enhanced Aluminum, Protected Gold and Protected Silver Coating Options Knife-Edge Pickoff Mirrors are designed to selectively reflect an individual beam from a group of tightly spaced beams, while minimizing the overall footprint of the application. These mirrors feature a sharp 45° bevel with a reflective coating that extends to the beveled edge on a precision Fused Silica substrate with λ/10 flatness to the bevel. Knife-Edge Pickoff Mirrors are ideal for applications that incorporate dispersion prisms and diffraction gratings. These mirrors are available in three metallic coating options with performance from the visible spectrum into the far IR. Specifications General Type: Flat Mirror Physical & Mechanical Properties Diameter (mm): 25.40 Dimensional Tolerance (mm): +0.0/-0.20 Thickness (mm): 6.35 ±0.20 Parallelism (arcmin): 2 Back Surface: Fine Grind Edges: Ground Bevel: Protective as needed Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Coating: Protected Silver (450-10000nm) Coating Type: Metal Coating Specification: R avg >98% @ 450 – 800nm R avg >98.5% @ 2000 – 10,000nm Wavelength Range (nm): 450 – 10000 Surface Flatness (P-V): λ/10 Damage Threshold, Reference: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 0.5 J/cm 2 @ 532nm & 1064nm, 10ns Surface Quality: 20-10 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
