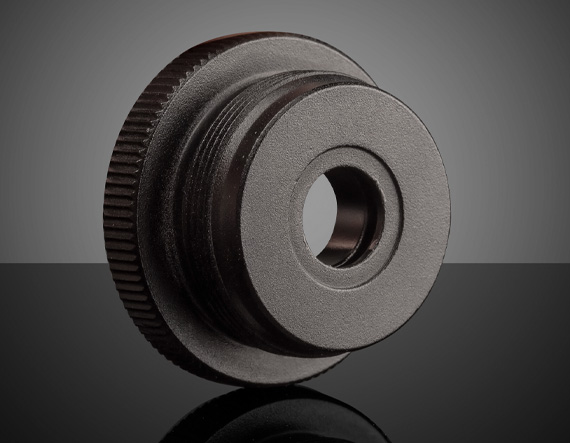

25.8mm Outer Diameter, Precision Pinhole Mount

Product Details Provides Mechanical Support for Precision Pinholes Uses a Retainer Ring to Minimize Mechanical Stress Adaptable to C-Mount Components With a 1.02″ diameter, the Precision Pinhole Mount features a retainer ring for the secure placement of ⅜” (9.5mm) diameter unmounted precision pinholes . The back face has a male external RMS thread (20.32mm x 36TPI). When used with #03-627 threaded objective ring mount, the Precision Pinhole Mount can easily mount to C-mount components . A two piece ring mount with a ¼-20 mounting hole is available to adapt the Precision Pinhole Mount to standard optical breadboards and posts . Specifications General Note: Requires one pinhole aperture Physical & Mechanical Properties Outer Diameter (mm): 25.8 Construction: Black Anodized Aluminum Threading & Mounting Diameter of Compatible Optics (mm): 9.5 Barrel Thread: M20.3 x 0.7 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
