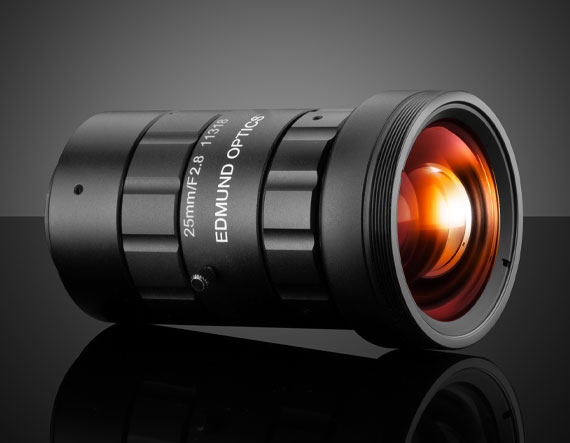

25mm CA Series Fixed Focal Length Lens

Product Details APS-C (27.9mm), TFL-Mount Lens or M40 Mount Lens Greater than 30 MegaPixels, 3.45µm Pixel Size Sensors High Resolution, Compact APS-C Lens (CA) 35mm to 100mm Focal Length TECHSPEC CA (Compact APS) Series Fixed Focal Length Lenses are designed for high-resolution large-format sensors. Covering the APS-C format sensors with a 28mm image circle, these lenses feature a TFL Mount or M40 Mount. TFL Mounts feature an M35 x 0.75 thread with a 17.526mm flange distance and offer the same robustness and ease of use as C-Mount. M40 Mounts feature a M40 x 0.75 thread with also with a 17.526mm flange distance. M40 Mount lenses provides a robust, large format mounting solution ideal for high-resolution and larger image sensors with improved mechanical stability and optical performance compared to smaller format mounts. TECHSPEC CA Series Fixed Focal Length Lenses offer a compact size while accommodating large format sensors, making them ideal for machine vision and factory automation applications. These lenses won the 3rd place 2020 Inspect Award and the Silver-Level 2020 VSD Innovators Award . Specifications General Product Family: CA Series Type: Fixed Focal Length Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 93.65 Maximum Diameter (mm): 52 Outer Diameter (mm): 52 Maximum Rear Protrusion (mm): 0 Optical Properties Field of View at Max Sensor Format: Horizontal: 50.0° Vertical: 38.0° Diagonal: 61.5° Horizontal Field of View, APS-C Sensor: 50.0° Horizontal Field of View, 4/3″ Sensor: 38.0° Horizontal Field of View, 1.1″ Sensor: 32.1° Horizontal Field of View, 1″ Sensor: 29.2° Horizontal Field of View, 2/3″ Sensor: 20.2° Maximum Image Circle (mm): 27.90 Numerical Aperture NA, Object Side: 0.019 Number of Elements (Groups): 10 (9) Focal Length FL (mm): 25.00 Working Distance (mm): 200 – ∞ Aperture (f/#): f/2.8 – f/16 Coating Specification: λ/4 MgF 2 Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 39.64 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 47.46 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -8.15 Maximum Distortion (%): 5.8 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -56.88 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: APS-C Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M52 x 0.75 (Male) Mount: TFL-Mount Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
