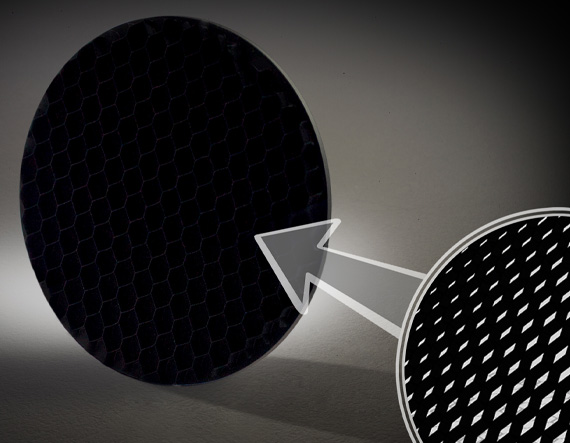

25mm Dia. Hexa-Black Panel

Product Details Mountable Acktar Spectral Black, Metal Velvet, and Hexa-Black Technologies High Performance from UV to MWIR and UV to LWIR Low Hemispherical Reflectance Acktar Light Absorbent Panels are the optimum solution for absorbent black out materials. Light Absorbing Panels are easily integrated into an optical system using either an optical mount compatible with 25mm optics or the included adhesive sticker. With specular absorbance up to 99.9%, Spectral Black and Metal Velvet panels offer superior light absorption performance. The Hexa-Black versions feature wide-band absorption at grazing angles out to 88˚. Acktar Light Absorbent Panels are typically used as black out materials and are ideal for Raman Spectroscopy, Endoscopy, Laser Beam Dumps, and many other applications. Note: Larger sizes and custom options are available upon request by contacting technical support . All panels have no adhesive pre-applied to the back surface. Each panel ships with an optional adhesive sticker that can be applied to the back surface of the panel. Specifications General Model Number: HBP-25-3 Note: Ships with a low outgassing adhesive sticker that can be applied to the back surface Physical & Mechanical Properties Diameter (mm): 25.00 Construction: Hexa-Black Panel Adhesive Thickness (μm): 60 Thickness (mm): 3.00 Optical Properties Coating: Vacuum Black Wavelength Range (μm): 0.3 – 5 Absorbance (AOI > 60) (%): 99.995 Material Properties Absorbance (%): 99.9 Environmental & Durability Factors Operating Temperature (°C): -50 to 150 Abrasion Resistance: High Humidity Resistance: MIL-C-48497A Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
