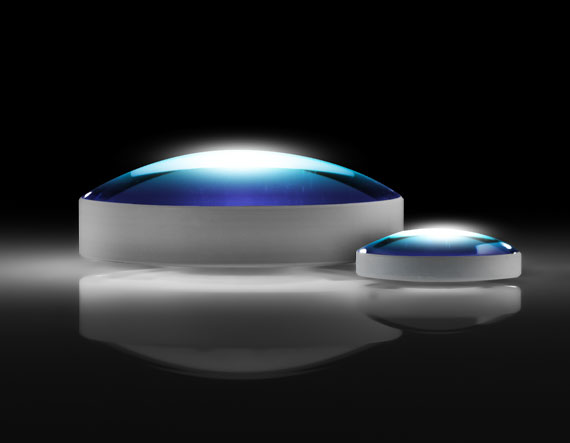

25mm Dia. x 75mm FL, Uncoated, Best Form Spherical Lens

Product Details Asymmetrical Design for Precise Focusing and Small Spot Size Uncoated Fused Silica Substrate with 10-5 Surface Quality Ideal for Higher Power Laser Applications Best Form Spherical Lenses are double-convex (DCX) lenses designed with asymmetrical faces to achieve the smallest possible spot size with spherical surfaces. Featuring 10-5 surface quality and utilizing UV Fused Silica substrates, these lenses are an alternative to laser grade aspheric lenses. With common diameters and various focal lengths available, these lenses can easily be integrated into optical systems requiring precise focusing. Best Form Spherical Lenses are optimized to reduce spherical aberration and far exceed performance of plano-convex (PCX) lenses without the cost associated with aspheric lens designs. These lenses are ideal for precise laser applications where the large aperture diffraction limited performance of an aspheric lens is not needed. Specifications General Type: Double-Convex Lens Physical & Mechanical Properties Diameter (mm): 25.00 +0/-0.025 Center Thickness CT (mm): 4.00 ±0.05 Edge Thickness ET (mm): 1.67 Centering (arcmin): <1 Clear Aperture CA (mm): 22.50 Bevel: Protective as needed Optical Properties Effective Focal Length EFL (mm): 75.00 Focal Length Specification Wavelength (nm): 587.6 Back Focal Length BFL (mm): 72.76 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica f/#: 3 Coating: Uncoated Wavelength Range (nm): 200 - 2200 Surface Quality: 10-5 Power (P-V) @ 632.8nm: 1.5λ Irregularity (P-V) @ 632.8nm: λ/4 Radius R 1 (mm): 185.00 Radius R 2 (mm): 41.95 Numerical Aperture NA: 0.17 Conjugate Distance: Infinite Regulatory Compliance Certificate of Conformance: View ×
