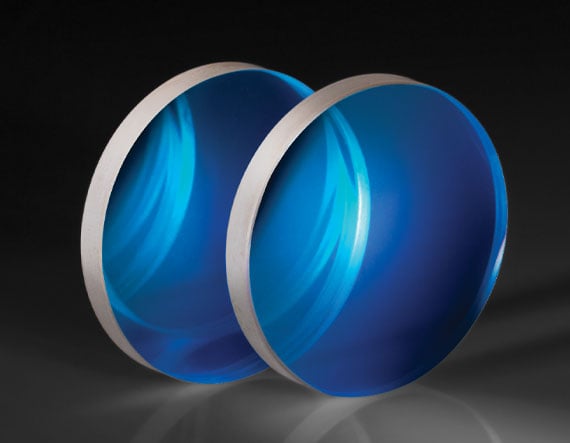

25mm Diameter 70R/30T, VIS λ/10 Plate Beamsplitter

Product Details 30 Arcminute Wedge to Minimize Internal Interference Wide Range of Splitting Ratios Fused Silica Substrate TECHSPEC λ/10 Plate Beamsplitters are designed for use with a 45 degree angle of incidence and random polarization. With a featured 30 arcminute wedge, the effects of internal interference are minimized. Each beamsplitter also includes a multi-layer anti-reflection (AR) coating on the back-surface. TECHSPEC λ/10 Plate Beamsplitters have been optimized for the visible spectrum and are offered in a variety of splitting ratios. These beamsplitters are ideal for laser applications due to the wedged design and high quality Fused Silica substrate. Specifications General Type: Standard Beamsplitter Physical & Mechanical Properties Construction: Plate Diameter (mm): 25.00 Dimensional Tolerance (mm): ±0.10 Edges: Protective Bevel as needed Thickness (mm): 3.00 ±0.20 Wedge Angle (arcmin): 30 arcmin Wedge Tolerance (arcmin): ±10 Optical Properties Coating Specification: Surface 1: 70/30 ±5% @ 550nm, ±10% @ 400 – 700nm Surface 2: AR R avg ≤1%, R abs ≤2% @ 400 – 700nm Reflection/Transmission Ratio (R/T): 70/30 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Surface Flatness (P-V): λ/10 Surface Quality: 20-10 Wavelength Range (nm): 400 – 700 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
