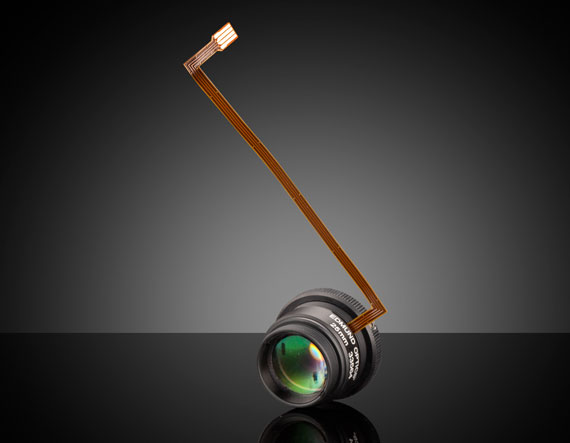

25mm, f/5, Liquid Lens Cx Series Fixed Focal Length Lens

Product Details Specifications General Product Family: LL Cx Series Note: Separate driver not included. Electronic development kit #28-773 recommended. Type: Fixed Focal Length Lens Integrated Liquid Lens Model: Corning Varioptic A-25H0 Imaging Lens Type: Integrated Liquid Lens to Adjust Focus Electronically Special Type of Lens: Liquid Lens Focusable Physical & Mechanical Properties Iris Option: Fixed Length (mm): 26.40 Maximum Diameter (mm): 30 Outer Diameter (mm): 30 Weight (g): 30 Maximum Rear Protrusion (mm): 0.76 Optical Properties Field of View at Max Sensor Format: Horizontal: 49.8mm – 19.1° Vertical: 37.2mm – 14.4° Diagonal: 62.5mm – 23.7° Horizontal Field of View, 2/3″ Sensor: 57.9mm – 19.1° Horizontal Field of View, 1/1.8″ Sensor: 47.3mm – 15.6° Horizontal Field of View, 1/2″ Sensor: 42.0mm – 13.4° Horizontal Field of View, 1/2.5″ Sensor: 38.1mm – 12.6° Horizontal Field of View, 1/3″ Sensor: 31.5mm – 10.5° Maximum Image Circle (mm): 11.00 Numerical Aperture NA, Object Side: 0.0136 Number of Elements (Groups): 8 (7) Focal Length FL (mm): 25.00 Working Distance (mm): 150 – ∞ Aperture (f/#): f/5 Coating Specification: 425 – 675nm BBAR Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 22.94 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 22.66 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -13.81 Maximum Distortion (%): 0.07 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -13.53 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 2/3″ Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M25.5 x 0.50 (Male) Filter Thread Adapter: #89-941 (Required) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
