25mm HR Series Fixed Focal Length Lens

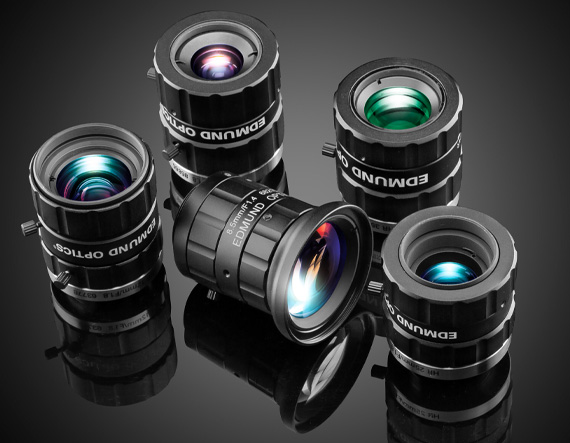

Product Details 2/3″, C-Mount Lens Up to 10 MegaPixels, 1.85µm Pixel Size Sensors High Resolution (HR), FA Lens for Machine Vision 8.5mm to 35mm Focal Length TECHSPEC HR Series Fixed Focal Length Lenses have multiple options available for each focal length to accommodate a variety of optimized working distance ranges. These lenses are ideal for machine vision (MV) and factory automation (FA) applications. TECHSPEC HR Series Fixed Focal Length Lenses are perfect for use on high-end 5 MegaPixel and 9 MegaPixel sensors that require resolution and high contrast. All lenses are C-Mount and feature locking focus, iris rings, and a front filter thread to allow the use of standard optical filters for increased versatility. Call for OEM Quantity Pricing. Edmund Optics has created a family of high performance optical designs (the HR Series family) and developed three customized optomechanical solutions targeted for specific applications. These lens sub-families utilize the same optics as the HR Series Lenses, providing the same optical performance in a variety of optomechanical solutions to meet your application requirements: HR Series: Features locking cam focus and iris adjustment. This is the most adjustable version of these optical designs and is the typical high quality machine vision lens. HRi Series : Simplified mechanics featuring fixed apertures with compact housing. Industrial Ruggedization for reduced size, cost, and locked focus. HRr Series : All optics glued in place and a locking C-clamp focus ring. Stabilized Ruggedization for reduced pixel shift and improved focus stability. Specifications General Product Family: HR Series Type: Fixed Focal Length Lens Imaging Lens Type: High Performance Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 32.20 Maximum Diameter (mm): 31.5 Weight (g): 52 Maximum Rear Protrusion (mm): 7.00 Optical Properties Horizontal Field of View @ Max Sensor Format: 18.6° Field of View at Max Sensor Format: Horizontal: 18.6° Vertical: 14.0° Diagonal: 23.2° Horizontal Field of View, 2/3″ Sensor: 18.6° Horizontal Field of View, 1/1.8″ Sensor: 16.4° Horizontal Field of View, 1/2″ Sensor: 14.6° Horizontal Field of View, 1/2.5″ Sensor: 13.2° Horizontal Field of View, 1/3″ Sensor: 11.0° Horizontal Field of View, 1/4″ Sensor: 29.4mm – 8.2° Maximum Image Circle (mm): 11.00 Numerical Aperture NA, Object Side: 0.0202 Number of Elements (Groups): 5 Focal Length FL (mm): 25.00 Working Distance (mm): 200 – ∞ Aperture (f/#): f/2 – f/22 Coating: 425 – 675nm BBAR Coating Specification: 425 – 675nm BBAR Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 13.44 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 22.46 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -13.73 Maximum Distortion (%): 0.85 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -27.85 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 2/3″ Threading & Mounting Filter Thread: M25.5 x 0.50 (Female) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance Certificate of Conformance: View ×
