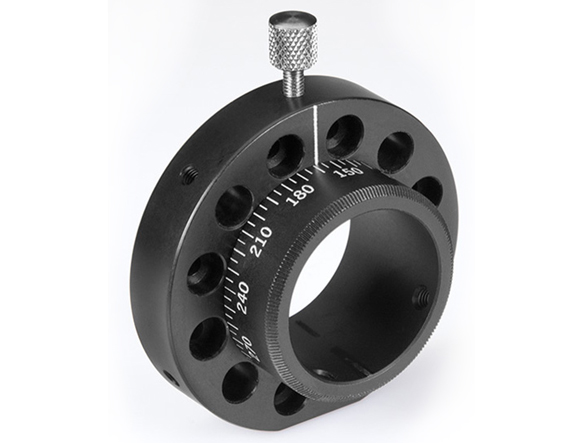

25mm ID Rotary Mount, M6

Product Details Specialized Plates Designed to Hold and Position Optics Anodized Aluminum Construction with Stainless Steel Screws X-Y Micro Positioning Plate with RMS Mounting Thread TECHSPEC Cage System Adjustable Plates are used to integrate optical components into the TECHSPEC Cage System while providing rotary, tip-tilt, or linear adjustment. Rotary Mounts are available with M6 or ¼-20 mounting threads and are designed to fit within the inner diameter of 25mm cage system plate s . The Kinematic Cage Mounting Plate is compatible with 30mm cage system plates and enables kinematic adjustment of cage system assembles. The X-Y Micro Position Stage Plate also has 6mm rod holes, and features a 7mm clear aperture, X-Y micro-positioner, and an RMS threaded mount for precision mounting alignment. Specifications General Function: Rotary Type of Optics: Circular/Cylindrical Tube Physical & Mechanical Properties Plate Inner Diameter (mm): 25.0 Bolt Circle Diameter for 6mm Dia. Thru (mm): 38.0 Construction: Black Anodized Aluminum Dimensions (mm): 50 Dia. Thickness (mm): 21.00 Bolt Circle Diameter for M3 Tapped (mm): 38.0 Threading & Mounting Compatible Post: M6 x 1.0 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
