25mm Interchangeable Optic Mount

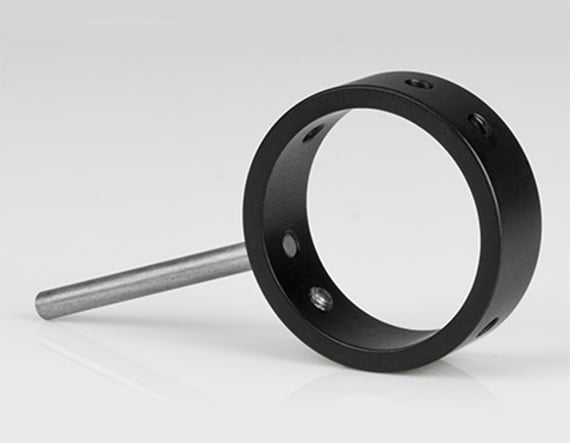

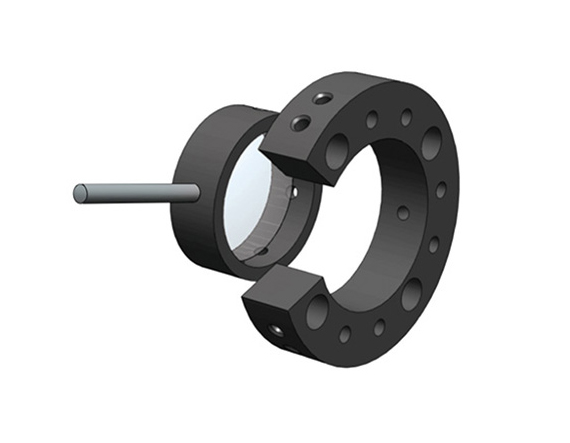

Product Details English and Metric Post Adapters Customizable Blank Disks Reducing Rings TECHSPEC Cage System Accessories are additional components for customizing a cage system. Reducing rings are used to decrease the inner diameter of cage system plates, and feature a thru-hole that allows one of the set screws to pass from the plate, through the ring, to the optic or optical mount. For mounting directly to posts , post adapter disks feature M6 or ¼-20 tapped holes. 25mm diameter x 25mm length cage system post adapter disks can also be used to join a swivel plate pair. Blank disks are available to block optical paths, or to create customized mounts. Each blank disk features a 3mm diameter x 1mm deep centering hole for easy customization. Compatible with #85-641 30mm Side Access Plate, #85-717 25mm Interchangeable Optical Mount is equipped with a handle for easy insertion and removal from a cage setup. Note: #85-719 C-Mount Adapter fits within the inner diameter of 30mm cage system plates and features both male and female threading for easy integration with TECHSPEC C-mount components . Quick Video Demonstration Maximize your application performance with the right products. View a quick video demonstration of TECHSPEC Cage System components: Interchangeable Optical Mount and Side Access Mounting Plate . Specifications General Function: Fixed Type of Optics: Circular Note: Recommended for use with #85-641. Physical & Mechanical Properties Compatible Plate Inner Diameter (mm): 30.0 Clear Aperture CA (mm): 25 Dimensions (mm): 30 Dia. Thickness (mm): 10.00 Threading & Mounting Size of Compatible Optics (mm): 25.0 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 233: Compliant ×
