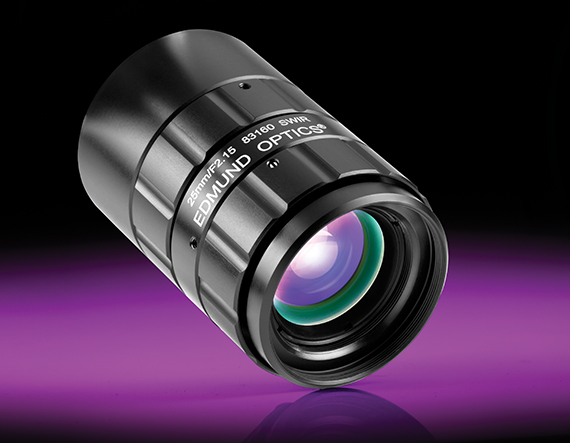

25mm SWIR Series Fixed Focal Length Lens

Product Details 4/3″, C-Mount, M42, F-Mount Lens Up to 3 MegaPixels, 10µm Pixel Size Sensors Designed and Optimized for SWIR (900-1700nm) InGaAs Sensors 25mm to 100mm Focal Length TECHSPEC SWIR Series Fixed Focal Length Imaging Lenses are compact, lightweight lenses designed for applications operating in the short-wave infrared (SWIR) spectra, ranging from 0.9 – 1.7μm. These lenses feature SWIR-optimized optical designs, glass types, and AR coatings from 0.8 – 1.8μm. Designed for high throughput and superior performance, the SWIR Series lenses are commercial-off-the shelf (COTS) lenses with low f/#’s, covering large 25mm sensors. TECHSPEC SWIR Series Fixed Focal Length Lenses are ideal for a range of applications including inspection, sorting, and quality control. There are focal lengths ranging from 25 to 100mm available for purchase. Specifications General Product Family: SWIR Series Note: Lens will cover larger 25.6mm and 20.5mm line scan sensors. Type: Fixed Focal Length Lens Imaging Lens Type: SWIR Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 63.50 Maximum Diameter (mm): 40 Outer Diameter (mm): 40 Weight (g): 177 Maximum Rear Protrusion (mm): 7.62 Flange Distance (mm): 17.526 Optical Properties Horizontal Field of View @ Max Sensor Format: 143.8mm – 38.9° Field of View at Max Sensor Format: Horizontal: 171.5mm – 45.8° Vertical: 127.9mm – 34.9° Diagonal: 216mm – 56.1° Horizontal Field of View, 25.6mm Sensor: 206.8mm – 55.8° Horizontal Field of View, 4/3″ Sensor: 143.8mm – 38.9° Horizontal Field of View, 20.5mm Sensor: 128.2mm – 35.5° Horizontal Field of View, 1.1″ Sensor: 117.7mm – 32.2° Horizontal Field of View, 1″ Sensor: 105.9mm – 29.1° Horizontal Field of View, 2/3″ Sensor: 72.6mm – 20.2° Horizontal Field of View, 1/1.8″ Sensor: 59.3mm – 16.5° Horizontal Field of View, 1/2″ Sensor: 52.7mm – 14.7° Horizontal Field of View, 1/2.5″ Sensor: 47.8mm – 13.3° Horizontal Field of View, 1/3″ Sensor: 39.5mm – 11.0° Horizontal Field of View, 1/4″ Sensor: 29.6mm – 8.3° Maximum Image Circle (mm): 25.60 Numerical Aperture NA, Object Side: 0.0265 Number of Elements (Groups): 9 (6) Focal Length FL (mm): 25.00 Working Distance (mm): 200 – ∞ Aperture (f/#): f/2.1 – f/16 Coating: 0.8 – 1.8µm BBAR Coating Specification: 0.8 – 1.8µm BBAR Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 16.41 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 21.53 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -15.35 Maximum Distortion (%): -3.03 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -21.79 Lens Wavelength Range: SWIR Sensor Maximum Sensor Format: 4/3″ Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M34 x 0.50 (Female) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance Certificate of Conformance: View ×
