25mm Travel, Metric Micrometer, Solid-Top Ball Bearing Stage

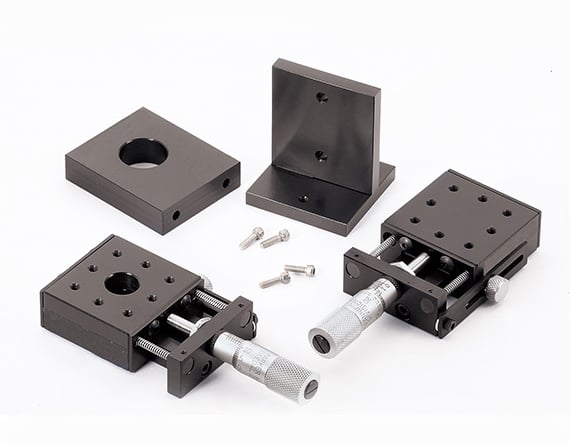

Product Details Preloaded Ball Bearing Design for Low-Friction Linear Adjustment Solid-Top and Thru-Hole Versions English or Metric Micrometer Drive and Fine Screw Drive Available Stackable for 2-Axis or 3-Axis Movement Metric Ball Bearing Translation Stages with a metric hole patterns on both the top and bottom plates feature a preloaded ball bearing design that provides straight line accuracy of 2μm per 25mm of travel. These stages are available in multiple stage sizes and configurations of drive mechanism, drive orientation, and travel distance, as well as the option of a clearance-thru hole. The Fine Screw (64 Pitch) models provide fine resolution positioning while the English and Metric micrometer models provide a position readout in 0.001inch or 0.01mm graduations. Metric Ball Bearing Translation Stages are designed to reduce friction, allowing smooth linear motion without backlash or sideplay. All stages include screws for creating an X-Y stage and a position lock. Note: Adapter Plates and Z-Axis Brackets are available for breadboard mounting application and X-Y-Z configuration. Brackets include screws for assembling X-Y-Z stages from multiple stages. Specifications General Type: Metric Note: Solid Top Physical & Mechanical Properties Type of Movement: Linear (X) Guide System: Ball Bearing Drive Orientation: Center Drive Stage Size (mm): 127 x 127 Travel (mm): 25 Construction: Aluminium Stage Graduation (mm): 0.01 Height (mm): 25.4 Load Capacity, Normal (kg): 48 Load Capacity, T a (kg): 13.6 Straight Line Accuracy (μm): 2 per 25mm of travel Weight (kg): 1.2 Thrust Capacity, T a (kg): 13.6 Thrust Capacity, T b (kg): 1.1 Hardware & Interface Connectivity Type of Drive: Metric Micrometer Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
