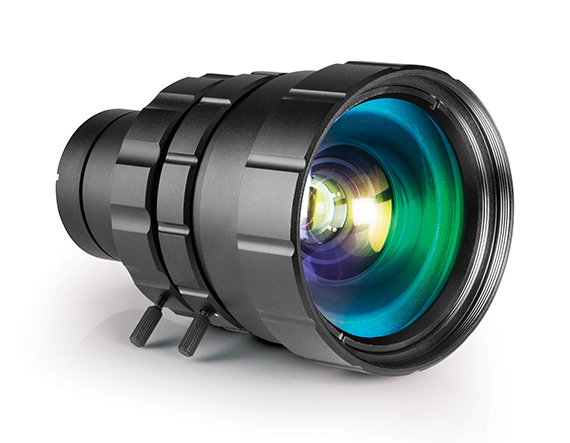

28mm Long Working Distance, LF Series Fixed Focal Length Lens

Product Details Note: 28mm focal length does not work on all F-mount cameras. Camera F-mount must have an inner diameter greater than 42mm. Full Frame (35mm), F-Mount Lens 29 MegaPixels, 5µm Pixel Size Sensors F-Mount Large Format (LF) Lens for Factory Automation 28mm to 100mm Focal Length TECHSPEC LF Series Fixed Focal Length Lenses are designed for use with 2k, 4k, 6k, and 8k line scan cameras and mid-sized area scan arrays. Optimized for machine vision working distances, LF Series lenses feature high resolving powers to easily detect small defects. Additionally, these lenses also feature a lockable focus and iris, which is ideal for factory automation applications where vibrations can cause performance decreases. TECHSPEC LF Series Fixed Focal Length Lenses are ideal for use in machine vision, web inspection, sorting, and identification applications. The lenses come in focal lengths ranging from 28 to 100mm. Note: 28mm focal length does not work on all F-mount cameras. Camera F-mount must have an inner diameter greater than 42mm. Specifications General Product Family: LF Series Type: Fixed Focal Length Lens Imaging Lens Type: Lens for Large Format Sensors Physical & Mechanical Properties Iris Option: Variable Length (mm): 106.00 Maximum Diameter (mm): 71 Outer Diameter (mm): 71 Weight (g): 554 Maximum Rear Protrusion (mm): 33 Optical Properties Horizontal Field of View @ Max Sensor Format: 982.6mm – 68.8° Field of View at Max Sensor Format: Horizontal: 943.9mm – 66.7° Vertical: 698.7mm – 51.9° Diagonal: 1193.3mm – 79.5° Horizontal Field of View, 35mm Sensor: 982.6mm – 68.8° Horizontal Field of View, APS-H Sensor: 788.9mm – 57.6° Horizontal Field of View, APS-C Sensor: 599.1mm – 45.3° Horizontal Field of View, 4/3″ Sensor: 599.1mm – 45.3° Horizontal Field of View, 1.1″ Sensor: 376.1mm – 29.4° Horizontal Field of View, 1″ Sensor: 338.5mm – 26.5° Horizontal Field of View, 2/3″ Sensor: 232.0mm – 18.4° Horizontal Field of View, 1/1.8″ Sensor: 189.7mm – 15.0° Horizontal Field of View, 1/2″ Sensor: 168.5mm – 13.4° Horizontal Field of View, 1/2.5″ Sensor: 152.7mm – 12.1° Horizontal Field of View, 1/3″ Sensor: 126.3mm – 10.1° Horizontal Field of View, 1/4″ Sensor: 94.7mm – 7.5° Maximum Image Circle (mm): 43.30 Numerical Aperture NA, Object Side: 0.0066 Number of Elements (Groups): 10 (8) Focal Length FL (mm): 28.00 Working Distance (mm): 700 – ∞ Aperture (f/#): f/2.8 – f/22 Coating: λ/4 MgF 2 Coating Specification: λ/4 MgF 2 Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 30.14 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 40.09 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -15.27 Maximum Distortion (%): -4.71 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -30.91 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 35mm (43.3mm Image Circle) Pixel Size (μm): 5.00 Threading & Mounting Filter Thread: M67 x 0.75 (Female) Mount: F-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × REACH 241: Compliant ×
