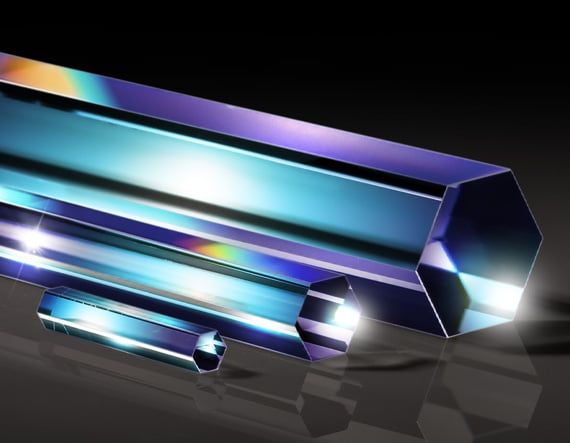

2mm Aperture, 50mm L Standard NA, Hexagonal Light Pipe

Product Details Homogenizes Non-Uniform Light Sources Hexagonal Entrance Aperture Uncoated and VIS-EXT Coated Options Available Ideal for OEM Illumination Additional Light Pipe Homogenizing Rods Available TECHSPEC N-BK7 Light Pipe Homogenizing Rods utilize total internal reflection to homogenize non-uniform light sources regardless of spectral characteristics. Their hexagonal configurations provide 35% less light loss than a comparable square configuration. Low Numerical Aperture (NA) sources require longer pipes to uniformly homogenize light, while shorter pipes will sufficiently homogenize the output from high NA sources. TECHSPEC N-BK7 Light Pipe Homogenizing Rods are made from precision N-BK7 for use in a variety of visible light applications and are available uncoated or with VIS-EXT coatings. Fused silica versions of our light pipe homogenizing rods are also available. TECHSPEC Light Pipe Homogenizing Rod Mounts , specifically designed to hold our standard and fused silica families of light pipe homogenizing rods, are available; these mounts greatly simplify the handling and integration of these components. Specifications General Type: Light Pipe Physical & Mechanical Properties Length (mm): 50.00 Parallelism (arcmin): <5.00 Length Tolerance (mm): ±0.3 Light Source NA: Standard Optical Properties Coating: Uncoated Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-BK7 Surface Quality: 60-40 Entrance and Exit Aperture (mm): 2.00 Aperture Tolerance (mm): ±0.10 Image Orientation: Light Homogenization Wavelength Range (nm): 350 - 2200 Surface Flatness (P-V): 1λ Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 253: Compliant ×
