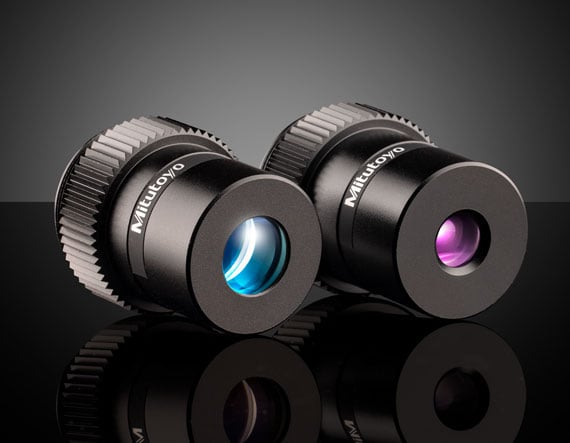

2X Mitutoyo Compact Objective

Product Details Long Working Distances Allow for Integration into Machine Vision Measurement Systems Small Size with Excellent Performance Long Working Distances Easily Integrates with C-Mount Cameras The Mitutoyo Compact Objectives are ideal replacements to commercial and biological grade microscope objectives. An optimized compromise between physical size, numerical aperture, and working distance leads to diffraction limited performance at a fraction of the size and cost of their infinity-corrected counterparts. These objectives are easily integrated into C-Mount imaging systems with our Mitutoyo C-Mount Camera Tube #56-992 . Higher powers are available in a larger package design, please contact our Applications Engineering Department for more information. Edmund Optics is the main source for Mitutoyo Objectives. Place your orders now for these in demand quality products. Specifications General Model Number: 375-032 Type: Microscope Objective Style: Finite Conjugate Manufacturer: Mitutoyo Physical & Mechanical Properties Length (mm): 18.00 Length excluding Threads (mm): 18.00 Maximum Diameter (mm): 30 Weight (g): 35.00 Optical Properties Effective Focal Length EFL (mm): 60.19 Horizontal Field of View, 1/2″ Sensor: 3.20mm Horizontal Field of View, 2/3″ Sensor: 4.40mm Focal Length FL (mm): 60.33 Magnification: 2X Numerical Aperture NA: 0.06 Resolving Power (μm): 4.6 Depth of Field (μm): 76.00 Field of View, 18 Diameter Field Eyepiece (mm): 9.0 Field of View, 24 Diameter Field Eyepiece (mm): 12.0 Working Distance (mm): 92.0 Wavelength Range (nm): 435 – 655 Field Number (mm): 24 Parfocal Length (mm): 110 Immersion Liquid: N/A Sensor Maximum Sensor Format: 2/3″ Threading & Mounting Mounting Threads: M26 x 36 TPI Environmental & Durability Factors Operating Temperature (°C): +5 to +35 Operating Humidity: 65±20% Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × REACH 241: Compliant ×
