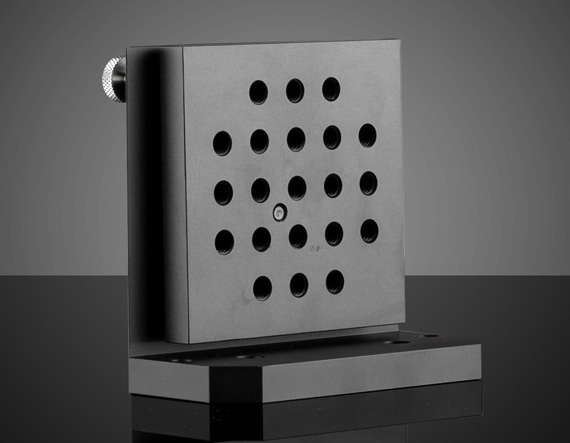

3.0″ Angle Mirror Mount

Product Details 3.0”, 4.5”, or 6.0” Square Mounting Surface Fine Adjustment Screws (64-Pitch) Allow for Tilting Mounting Plate with ¼-20 Threaded Holes Medium and Large Angle Mirror Mounts are available with a range of mounting plate sizes for mounting optical mirrors. These optical mirror mounts feature 64-pitch fine adjustment screws, allowing for precision tilting in two directions. Both square and rectangular optics can be mounted into these black anodized aluminum and stainless-steel mounts. Medium and Large Angle Mirror Mounts have two ¼-20 through holes on their angle bases for easy mounting to optical tables or breadboards. These mounts are available in 3”, 4.5”, and 6” sizes. Specifications General Type: Adjustable – Tip-Tilt Type of Optics: Square or Rectangular Number of Adjustment Screws: 2 Physical & Mechanical Properties Weight (lbs): 1.0 Construction: Black Anodized Aluminum, Stainless Steel Fine Tilt Angle (°): 12 Resolution (inches): 0.015 Fine Tip Angle (°): 12 Adjustment Screw Pitch (inches): 0.015 Threading & Mounting Size of Compatible Optics (mm): 12.7 – 76.2 Mounting Plate Size (inches): 3.0 Sq. Mounting Plate Screw Holes: (21) ¼-20 on 0.5″ Center Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
