304.8mm/12.0″ Optic Dia., Gimbal Mount

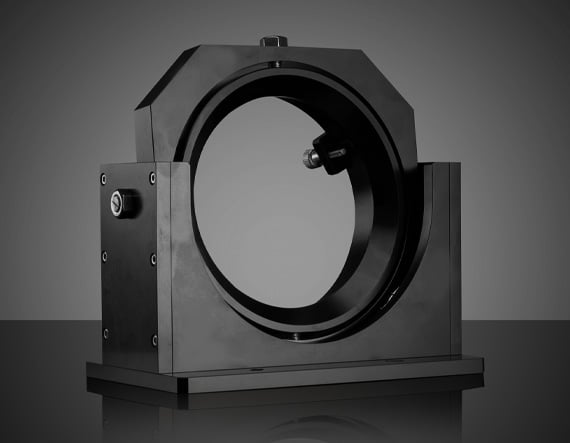

Product Details Gimbal Movement for Precision Tip and Tilt Alignment Compatible with 4”, 4.25”, 6”, 8″, 10″ and 12” Diameter Optics Designed for Flat Mirrors Direct Mounting to English and Metric Breadboards for System Integration Precision Gimbal Mounts for Smaller Optics Also Available Large Diameter Gimbal Optical Mirror Mount are ideal for integrating large diameter precision mirrors or other optical components into OEM and benchtop systems. These gimbal mirror mounts are compatible with 4.25” (with an included adapter for 4”), 6”, 8″, 10″ and 12” diameter optics. Gimbal movement centers the axes of rotation on the optical surface, which when combined with micrometer driven precision tip and tilt adjustment, allows for accurate control of the beam path. Large Diameter Gimbal Optical Mirror Mounts feature mounting slots for direct breadboard mounting at either parallel to or 45° to the beam path. The mounting slots are compatible with both M6 and ¼”-20 mounting hardware. Specifications General Type: Adjustable – Tip-Tilt Type of Optics: Circular Optic Holding Style: Three Spring-Loaded Clips Type of Adjustment Screws: Micrometer Physical & Mechanical Properties Clear Aperture CA (mm): 298.80 Fine Tilt Angle (°): ±4.0 Fine Tip Angle (°): ±4.0 Max. Thickness of Compatible Optics (mm): 55 Optical Axis Height (mm): 228.60 Size of Compatible Optics (inches): 12 Optical Axis Height (inches): 9 Threading & Mounting Size of Compatible Optics (mm): 304.80 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
