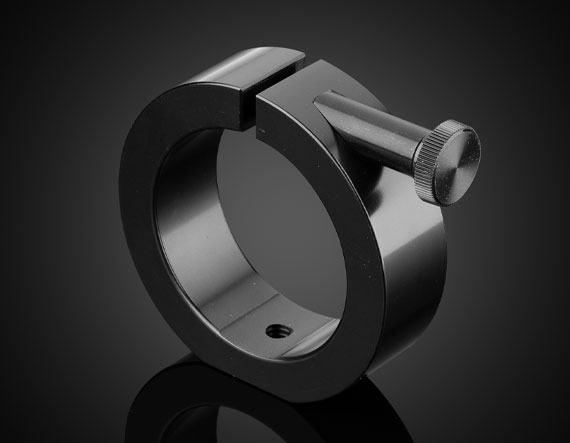

30mm, C-Mount Ring Mount, ¼-20 Tapped Hole

Product Details Allow for Post Mounting C, S, and T-Mount Tube System Assemblies ¼-20 or M6 Tapped Mounting Options Black Anodized Aluminum Construction TECHSPEC C, S, and T-Mount Ring Mounts feature a screw closure and accept 30mm, 16mm, and 48mm outer diameter tubes and barrels, respectively. Ring mounts are available with either ¼-20 or M6 tapped mounting threads with a flat mounting surface to facilitate mounting to optical bench posts. These mounts are compatible with a wide variety of Edmund Optics optomechanical components utilizing C, S, or T-Mount threads. TECHSPEC C, S, and T-Mount Ring Mounts are ideal for quickly integrating C, S, or T-Mount tube assemblies into any benchtop system. A black anodized construction reduces reflections within a system. Specifications General Function: Post Mounting Adapter Physical & Mechanical Properties Construction: Black Anodized Aluminum (6061 T6) Outer Diameter (mm): 48.0 Thickness (mm): 12.70 Inner Diameter (mm): 30.0 Threading & Mounting Thread Type: C-Mount Mounting Flat to Center (mm): 21.75 Compatible Post: ¼-20 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
