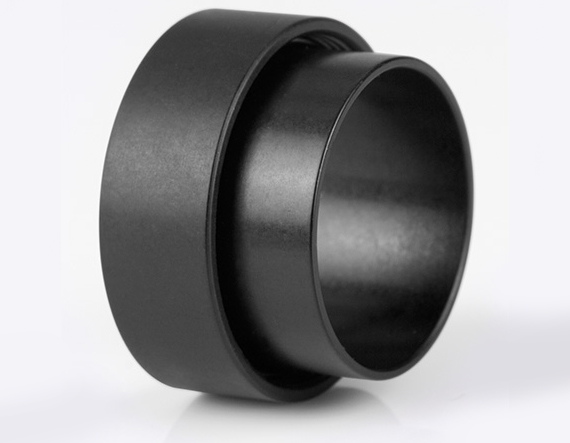

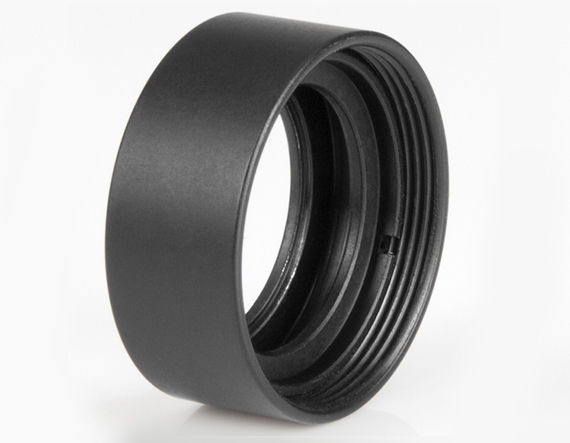

30mm Cage 25/25.4mm Diameter Thick Lens Mount

Product Details Available for a Range of Optical Lens Diameters Adds Additional Adaptability to Cage System Retaining Ring Included TECHSPEC Cage System Optical Lens Mounts, constructed of anodized aluminum, are designed to be used in a two-step process. First, secure the optical component within the lens mount using the included retaining ring. Second, secure the lens mount within the inner diameter of a cage system plate . By enabling the addition and removal of lens mounts from plates, the system creates a wide range of flexibility for cage setups. TECHSPEC Cage System Optical Lens Mounts are ideal as stand-alone components or combined with cage system tubes . Note: #85-678 is a two-piece assembly that can be used with either 25mm or 30mm cage system plates. Replacement retaining rings are sold separately. Specifications General Function: Fixed Type of Optics: Circular Type: Fixed Physical & Mechanical Properties Compatible Plate Inner Diameter (mm): 30.0 Length (mm): 15.00 Clear Aperture CA (mm): 22.00 Construction: Black Anodized Aluminum Dimensions (mm): 30 Dia. Threading & Mounting Size of Compatible Optics (mm): 25.0 – 25.4 Thickness of Compatible Optics (mm): 2.1 – 10.0 Thread Type: M23.2 x 0.75 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × REACH 241: Compliant ×
