30mm, Multiple Filter Holder

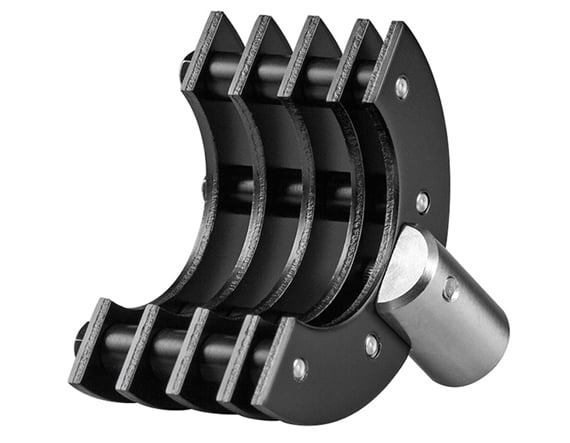

Product Details Allows Stacking of 3 or 5 Filters Black Anodized Aluminum Posts and Post Holders Required for Mounting Fixed/Multiple Filter Mounts are ideal for use with neutral density filters in stacking applications. Mounting cell holds filter with diameter “F” in place with a retainer ring. Mounting cell sits securely in filter holder. Fixed/Multiple Filter Mounts can also hold unmounted filters with diameter “A”. A filter holder and filter cell are required for a complete stacking system, such as the one illustrated in the product image. These mounts are constructed of black anodized aluminum and are optimal for mounting 3 or 5 circular optics. Posts and Post Holders are required for mounting to a breadboard. Specifications General Type: Fixed Type of Optics: Circular Note: Available in Quick Start Kit: #17-532 Physical & Mechanical Properties Construction: Black Anodized Aluminum Max. Thickness of Compatible Optics (mm): 5.0 Threading & Mounting Size of Compatible Optics (mm): 30.0 Compatible Post: M6 x 1.0 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
