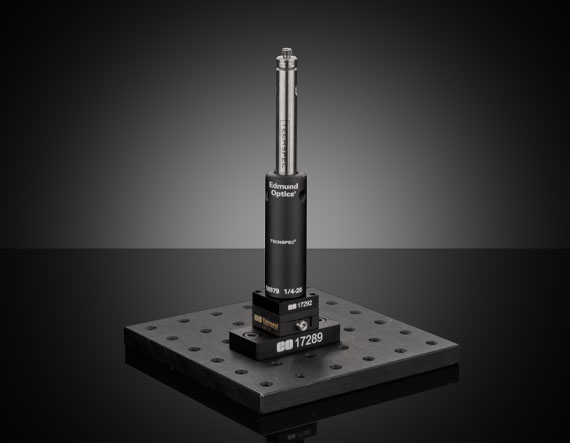

30mm Sq, 5kg Load Capacity, 8mm Travel, Metric Dovetail Stage

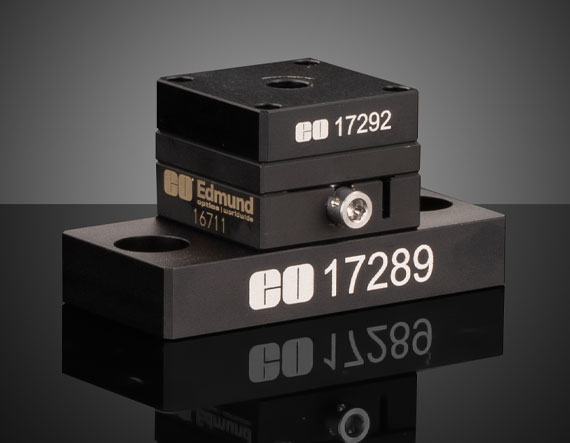

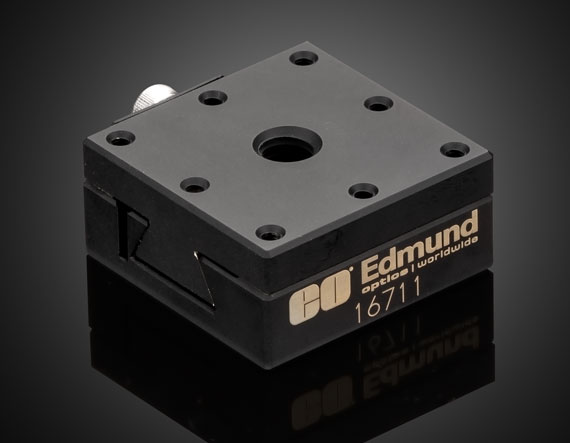

Product Details Compact Overall Size for System Integration Brass Construction for High Stiffness and up to 15kg Load Capacity Compatible with All TECHSPEC Stages TECHSPEC High Load Capacity Dovetail Stages are a compact, cost-effective solution for linear adjustment within an optical system. These stages feature high stiffness brass construction and a hex driven movement, allowing for a low profile and compact overall size with 5, 10, and 15kg high load capacity options. The absence of tension springs and the included external plate lock ensure resistance to vibration and increase stability. TECHSPEC High Load Capacity Dovetail Stages are ideal for imaging and laser optics systems that require low profile integrated linear adjustments in demanding environments. These stages feature bolt patterns that are compatible with all TECHSPEC and comparable metric and English stages. Specifications General Type: Metric Included Hardware: 4X M2 x 0.4, 8mmL Socket Head Cap Screws; 1X 3mm Allen Wrench; 1X 2.5mm Allen Wrench Physical & Mechanical Properties Type of Movement: Linear (X) Guide System: Dovetail Drive Orientation: Center Drive Stage Size (mm): 30 x 30 Travel (mm): 8 Travel (inches): 0.31 Construction: Matte Black Finish Brass Leadscrew Pitch (mm): 0.5 Load Capacity (kg): 5 Stage Size (inches): 1.18 x 1.18 Straight Line Accuracy (μm): 10 Hardware & Interface Connectivity Type of Drive: Lead Screw Threading & Mounting Mounting Threads: (1) M6 x 1, (8) M2 x 0.4 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
