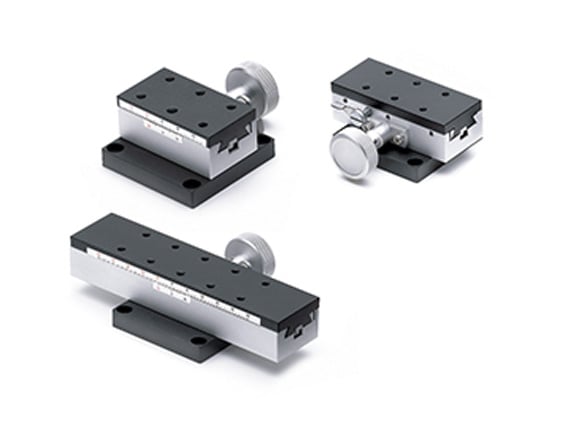

30mm Travel, X-Axis Rack & Pinion Stage

Product Details Use 120mm x 70mm Metric Base Plate ( #54-977 ) to connect Rack and Pinion Stages to breadboards. Z Axis Right Angle Brackets are available for use with stages that support Z axis translation. Aluminum Stage with Brass Rack and Pinion 20mm Travel per Knob Rotation Scale Features 1mm Increments with Locking Lever Basic Rack and Pinion Stages Also Available Rack and Pinion Stages are ideal for a wide range of applications requiring high load capacity, accuracy, and long travel distances. The knob provides coarse positioning adjustment with 20mm of travel per rotation and can be locked in place with the locking lever. These stages feature a Vernier scale with a resolution of 1mm for accurate and repeatable adjustments. Rack and Pinion Stages are available in a variety of translation axes, including Linear (X), Linear (X-Y), Linear (X-Z), Linear (X-Y-Z), and Linear (Z). Note: Use 120mm x 70mm Metric Base Plate ( #54-977 ) to connect Rack and Pinion Stages to breadboards. Z Axis Right Angle Brackets are available for use with stages that support Z axis translation. Specifications General Type: Metric Note: With locking lever Physical & Mechanical Properties Type of Movement: Linear (X) Guide System: Dovetail Stage Size (mm): 60 x 34 Travel (mm): 30 (±15) Center Hole: None Construction: Rack and Pinion: Brass Stage: Aluminum Load Capacity (kg): 7.5 Travel Per Knob Rotation (mm): 20 Weight (kg): 0.25 Resolution (mm): 0.1 Hardware & Interface Connectivity Type of Drive: Rack and Pinion Threading & Mounting Mounting Threads: (6) M4 x 0.7 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 247: Contains SVHC(s) ×
