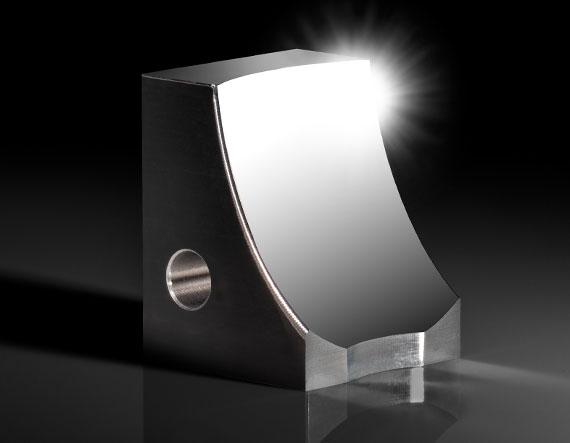

31.75mm Sq., 2.5X, Protected Aluminum Off-Axis Ellipsoidal Mirror

Product Details <100Å Surface Roughness for Low Scatter Diamond Turned Alignment Surfaces Ideal for Finite Conjugate Reflection TECHSPEC Off-Axis Ellipsoidal Mirrors are finite conjugate focusing mirrors used to image at a set angle. These mirrors feature fixed conjugate image and object path lengths, providing up to 2.5X magnification from the object plane to the imaging plane. Off-Axis Ellipsoidal Mirrors are commonly found in Fourier-transform infrared spectroscopy (FTIR) systems where broadband light sources require the use of metallic reflectors with an off-axis design to meet space constraints. TECHSPEC Off-Axis Ellipsoidal Mirrors feature a diamond turned cylindrical surface on their base, with a radius equivalent to the distance to the major axis of the ellipse, for aligning the mirror to the major axis as well as a diamond turned flat reference surface that is perpendicular to the major axis. Please contact us if your application requires an Off-Axis Ellipsoidal Mirror with custom specifications. Specifications General Type: Off-Axis Ellipsoidal Mirror Physical & Mechanical Properties Dimensions (mm): 31.75 x 31.75 Length (mm): 31.75 Width (mm): 31.75 Surface Roughness (Å): <100 RMS Image Distance (mm): 83.82 Y Offset (mm): 49.38 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Aluminum 6061-T6 Coating: Protected Aluminum (400-2000nm) Coating Type: Metal Coating Specification: R avg >85% @ 400 – 700nm R avg >90% @ 400 – 2000nm Wavelength Range (nm): 400 – 2000 Off-Set Angle (°): 65.44 Surface Quality: 60-40 Magnification: 2.5X Object Distance (mm): 33.02 Reflected Wavefront, RMS: λ/4 Regulatory Compliance Certificate of Conformance: View ×
