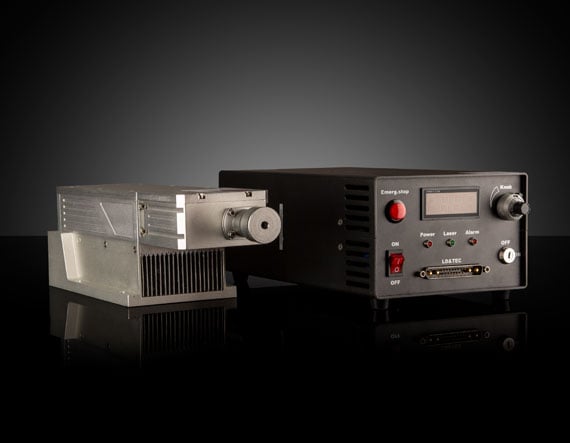

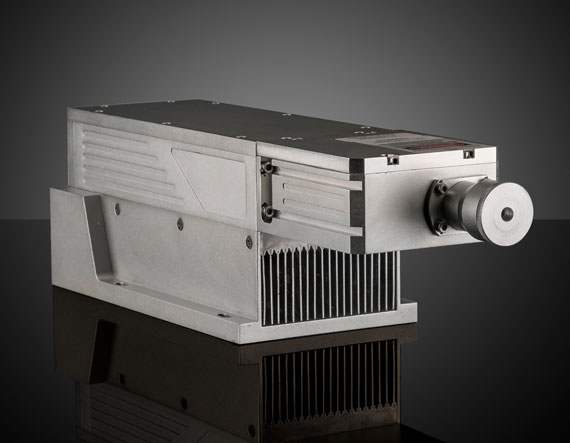

355nm Solid State Laser

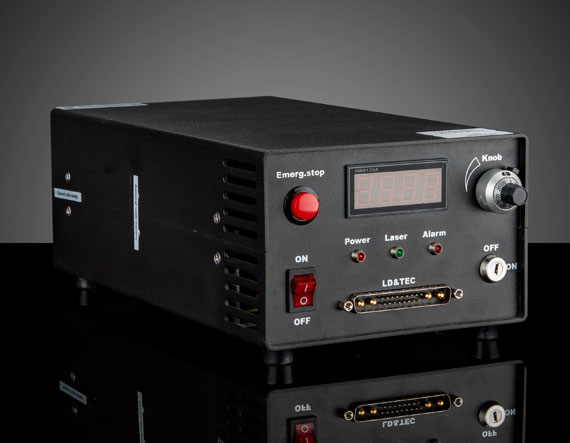

Product Details Class IIIb High Power Lasers 10mW Average Power <2ns Pulse Duration 355nm Frequency Converted Q-Switched 355nm Solid State Lasers are diode-pumped and generate UV light by frequency conversion of Q-Switched pulses. These lasers feature pulse durations less than 2ns and an average output power of 10mW. 355nm Solid State Lasers feature a compact form factor and are used for high power UV applications including UV curing, laser medical treatments, and micro-electronics manufacturing. An integrated thermoelectric cooler (TEC) promotes a long expected lifetime of 5000 hours. Note: Power supply included. Specifications General Warm-Up Time (minutes): <10 Laser Class - CDRH: IIIb Mean Time to Failure MTTF (hours): 5000 Physical & Mechanical Properties Dimensions (mm): 321.0 x 99.0 x 94.0 Beam Height from Base Plate (mm): 70 Optical Properties Polarization: 25:1 Wavelength (nm): 355.00 Mode Quality, M 2 : <1.2 Wavelength Tolerance (nm): ±1 Beam Diameter (mm): 1.0 Beam Divergence (mrad): <1.5 Color: UV Pulse Duration (ns): <2 Single Pulse Energy (µJ): 2.45 Electrical Power Stability (%): <2% RMS over 4 hours Average Output Power (mW): 22 Repetition Rate (kHz): 9 Hardware & Interface Connectivity Power Supply: Power Supply Included. Dimensions: 307.0 x 150.0 x 106.0mm Power Requirement: 100-240VAC Output Type: Free Space Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 233: Compliant ×
