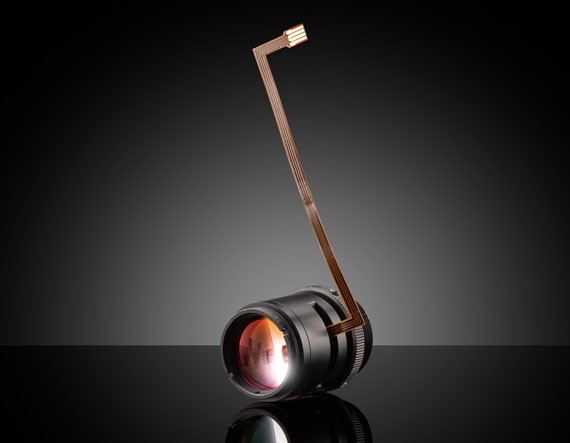

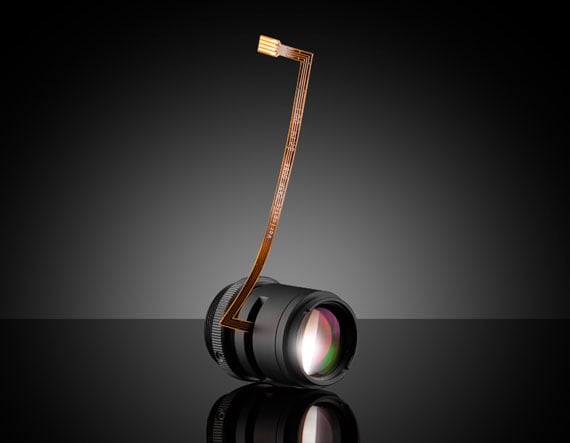

35mm, f/7, Liquid Lens Cx Series Fixed Focal Length Lens

Product Details Specifications General Product Family: LL Cx Series Note: Separate driver not included. Electronic development kit #28-773 recommended. When using a Maxim driver board (#12-247, #12-248, or #17-172) the jumper at ST2 must be removed before use to ensure optimal performance and product lifetime. Watch this video for more information. Type: Fixed Focal Length Lens Integrated Liquid Lens Model: Corning Varioptic A-25H0 Special Type of Lens: Liquid Lens Focusable Physical & Mechanical Properties Iris Option: Fixed Length (mm): 38.08 Maximum Diameter (mm): 30 Outer Diameter (mm): 30 Weight (g): 51 Maximum Rear Protrusion (mm): 0 Optical Properties Field of View at Max Sensor Format: Horizontal: 51.3mm – 13.9° Vertical: 38.4mm – 10.4° Diagonal: 64.1mm – 17.3° Horizontal Field of View, 2/3″ Sensor: 58.4mm – 13.2° Horizontal Field of View, 1/1.8″ Sensor: 47.7mm – 10.8° Horizontal Field of View, 1/2″ Sensor: 42.4mm – 9.6° Horizontal Field of View, 1/2.5″ Sensor: 38.4mm – 8.7° Horizontal Field of View, 1/3″ Sensor: 31.8mm – 7.2° Maximum Image Circle (mm): 11.00 Numerical Aperture NA, Object Side: 0.0095 Number of Elements (Groups): 8 (7) Focal Length FL (mm): 35.00 Working Distance (mm): 225 – ∞ Aperture (f/#): f/7 Coating Specification: 425 – 675nm BBAR Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 28.7 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 20.33 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -21.16 Maximum Distortion (%): 0.18 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -14.37 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 2/3″ Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M25.5 x 0.50 (Male) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
