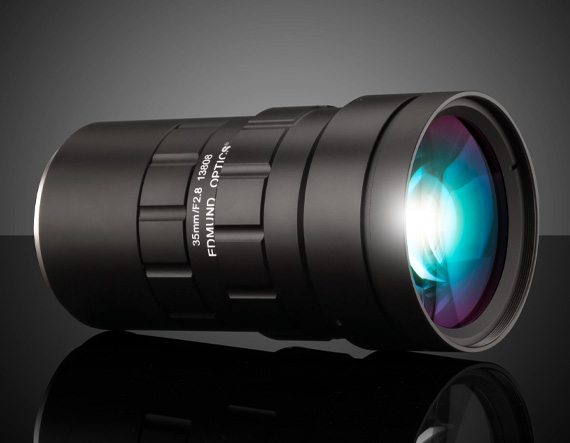

35mm F-Mount LH Series Fixed Focal Length Lens

Product Details Compatible with APS-H (35.5mm) and 35mm Full Frame Sensors 120 MegaPixels, 2.2µm Pixel Size Sensors Large format Lenses for APS-H Sensors (LH) Ultra-High Resolution Large Format Lenses TECHSPEC LH Series Fixed Focal Length Lenses are designed for 120 Megapixel sensors in an APS-H format. The LH Series are the first large format lenses to truly support the 2.2μm pixel size featured on the Canon 120MP CMOS Sensor. These ultra-high resolution lenses work with APS-H sensors (35.5mm diagonal) and also on larger 35mm full frame sensors (43.3mm diagonal). TECHSPEC LH Series Fixed Focal Length Lenses provide a solution for the ultra-high resolution requirements of machine vision and many factory automation and display inspection applications. F-Mount or TFL-II Mount versions are available. Specifications General Product Family: LH Series Type: Fixed Focal Length Lens Imaging Lens Type: Very High Performance Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 146.80 Maximum Diameter (mm): 75 Outer Diameter (mm): 75 Weight (g): 1029 Maximum Rear Protrusion (mm): 0 Optical Properties Horizontal Field of View @ Max Sensor Format: 312.5mm – 57.8° Field of View at Max Sensor Format: Horizontal: 302.7mm – 55.8° Vertical: 220.4mm – 42.2° Diagonal: 392.1mm – 68.5° Horizontal Field of View, 35mm Sensor: 312.5mm – 57.8° Horizontal Field of View, APS-H Sensor: 247.3mm – 47.3° Horizontal Field of View, APS-C Sensor: 185.9mm – 36.4° Horizontal Field of View, 4/3″ Sensor: 142.0mm – 28.2° Horizontal Field of View, 1.1″ Sensor: 115.9mm – 23.2° Horizontal Field of View, 1″ Sensor: 104.2mm – 20.9° Horizontal Field of View, 2/3″ Sensor: 71.3mm – 14.4° Horizontal Field of View, 1/1.8″ Sensor: 58.3mm – 11.8° Horizontal Field of View, 1/2″ Sensor: 51.8mm – 10.5° Maximum Image Circle (mm): 43.30 Numerical Aperture NA, Object Side: 0.0211 Number of Elements (Groups): 11 (9) Focal Length FL (mm): 35.00 Working Distance (mm): 250 – ∞ Aperture (f/#): f/2.8 – f/22 Coating: λ/4 MgF 2 Coating Specification: λ/4 MgF 2 Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 42.53 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 67.29 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 27.29 Maximum Distortion (%): -9.12 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -57.22 Lens Wavelength Range: VIS Sensor Optimized Sensor Format: APS-H Maximum Sensor Format: 35mm (43.3mm Image Circle) Pixel Size (μm): 2.20 Threading & Mounting Filter Thread: M72 x 0.75 (Female) Mount: F-Mount Regulatory Compliance Certificate of Conformance: View ×
