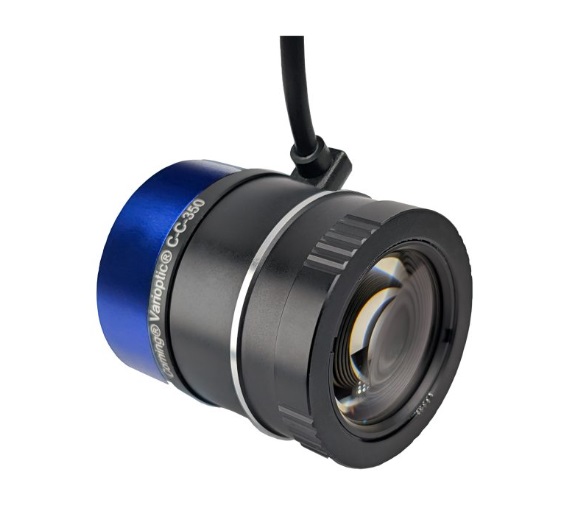

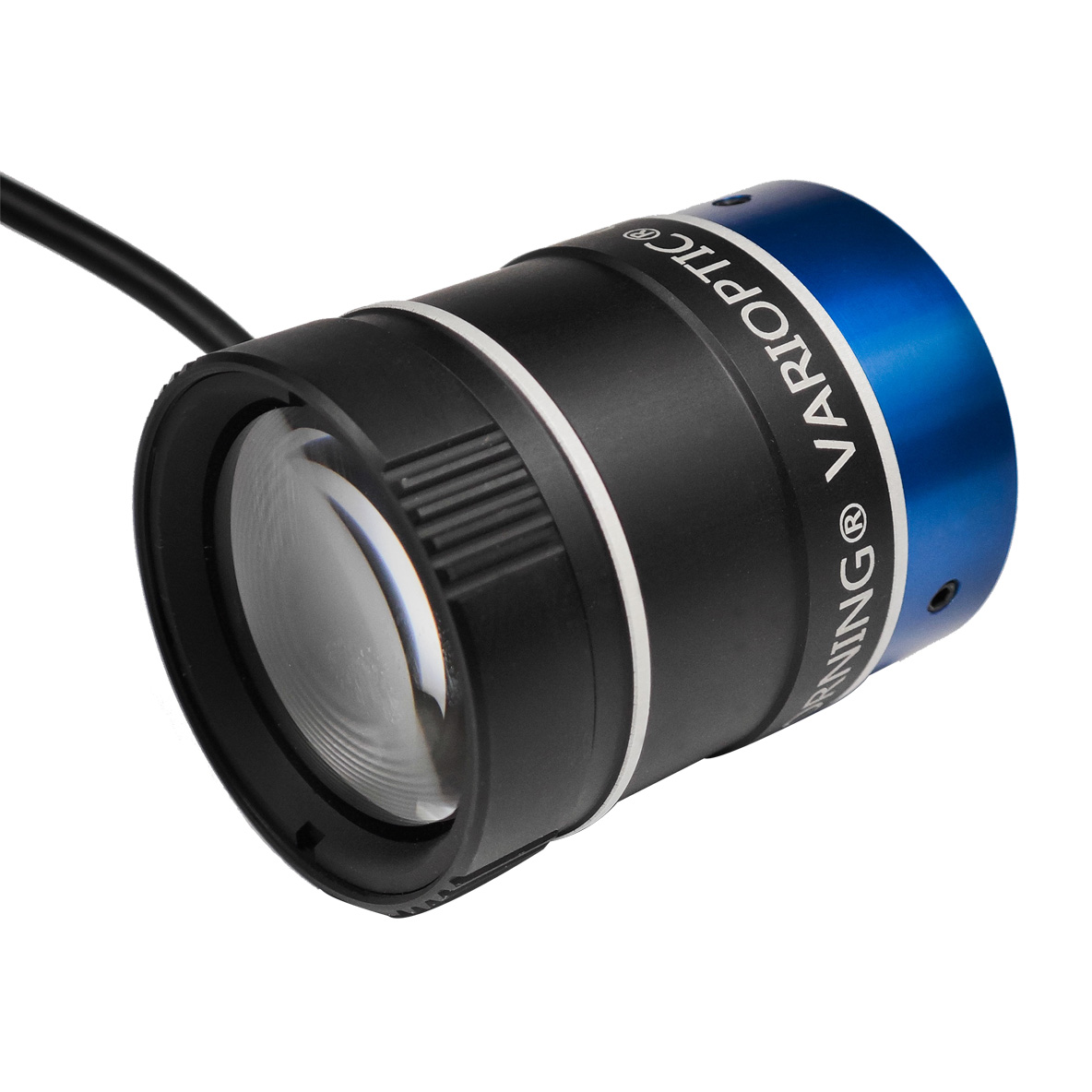

35mm FL, Corning Varioptic C-C Series C-Mount Liquid Lens Evaluation Kit

Product Details Electronically Controllable Focus Ideal For Machine Vision Applications Compatible With Up to 1.1”, 20mpx Sensors C-Mount for Seamless Integration into Imaging Systems Corning Varioptic C-C Series C-Mount Liquid Lens Evaluation Kits feature an electronically controllable liquid lens and integrated driver electronics in a compact, C-Mount design. With rapid switching times, no moving parts, and AR-Coatings for excellent transmission in the VIS and NIR, these lenses are an ideal solution for autofocus applications demanding clarity, durability, and speed. Designed for seamless integration into C-Mount machine vision and imaging systems, the lenses are compatible with sensors up to 1.1″. Corning Varioptic C-C Series C-Mount Variable Focus Liquid Lenses’ integrated electronics allow the lenses to be powered by a simple DC supply and controlled through RS-232, I²C, or SPI interfaces. Evaluation kits include Lenses, USB-M Universal, USB Cable, and Focuslab Software Control Software and Documentation Package. Specifications General Type: Development Kit Contents of Kit: Corning Varioptic C-C-39N0-A1-350 Lens USB-M Universal USB Cable Focuslab Software Control Software and Documentation Package Optical Properties Focal Length FL (mm): 35.00 Aperture (f/#): f/5.5 to f/22 Lens Wavelength Range: VIS Working Distance (mm): 200 – ∞ Sensor Pixel Size (μm): 2.74 Sensor Format: 1.1″ Threading & Mounting Mount: C-Mount Environmental & Durability Factors Operating Temperature (°C): 50 Storage Temperature (°C): 45 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
