35mW, 660nm Machine Vision Laser Dev Kit

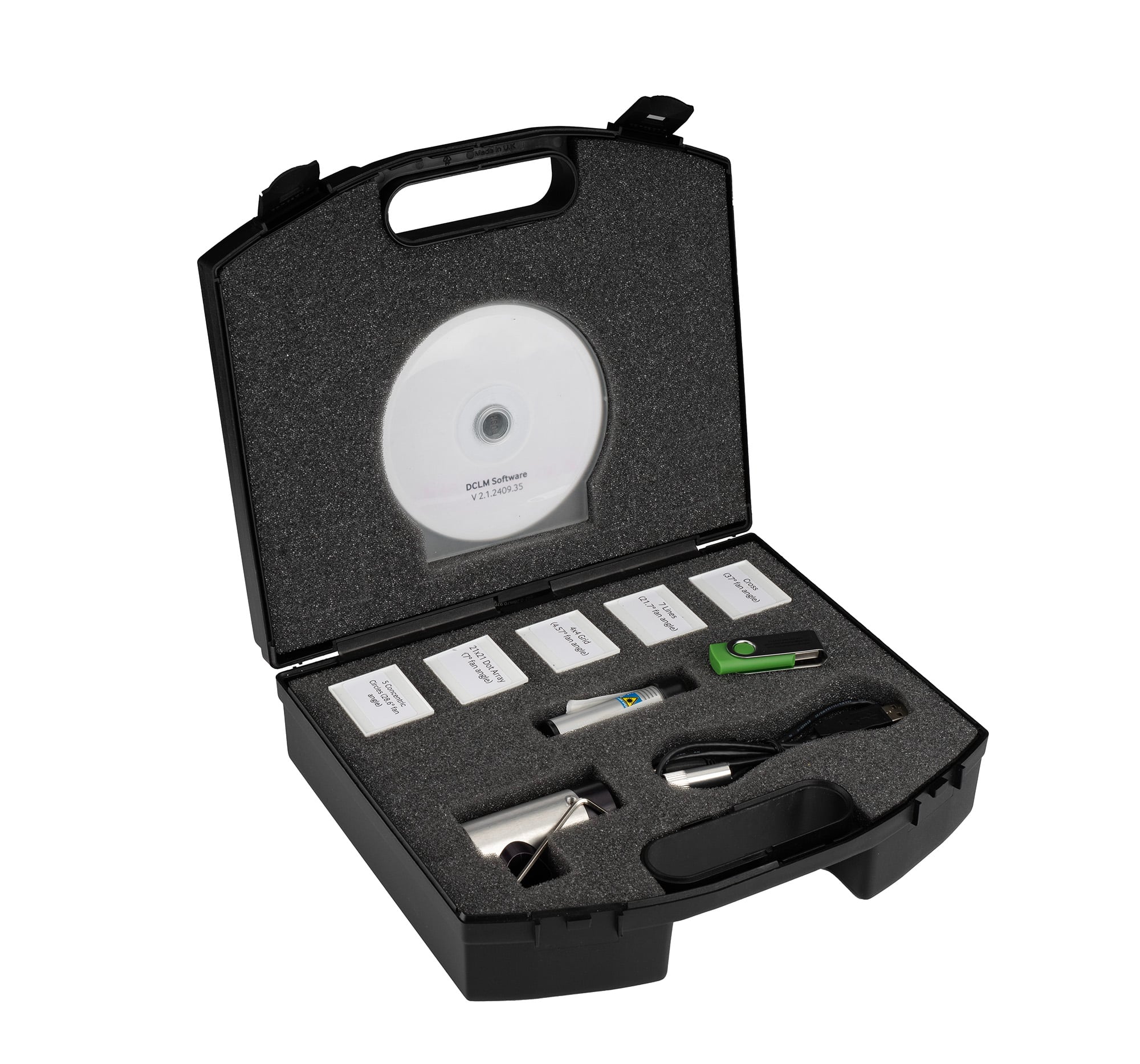

Product Details Features a 660nm, 35mW Red Laser Diode USB Powered and Controllable via Computer Includes Mount, Six Different Projection Heads, and Software Ideal for Inspection, Measurement, and Control Applications The Machine Vision Laser Development Kit is designed to serve as all-in-one industrial laser light source package for system integrators and developers in the machine vision and inspection industries. Featuring a high power 35mW, 660nm industrial laser diode, a heavy duty mounting clamp, and six interchangeable projection optics, this development kit provides all the necessary components and software for ease of setup and integration. In addition to the interchangeable projection optics, a focus key is included for manual laser focus adjustment, allowing the projection to fit working distances up to 5.5m. No external power supply is required, and when disconnected from the computer, the laser will retain its settings (such as modulation and output power), allowing for flexibility in system design and layout. The Machine Vision Laser Development Kit is ideal for use with industrial cameras for a range of inspection, measurement, and control applications. A rugged carrying case is included to securely store and transport all the kit components. Specifications General Mean Time To Failures MTTF @ 25° (hours): ≥100,000 Contents of Kit: Lyte-MV-DCLM 660nm, 35mW Machine Vision Laser 6 Interchangable optics USB Cable Software Heavy Duty Mounting Clamp Focus Keys Heavy Duty Carry Case Type of Laser: Diode Laser Class – CDRH: IIIB Physical & Mechanical Properties Dimensions (mm): 73.5 Long x 19 Dia Weight (g): 44 Housing Length (mm): 73.5 Optical Properties Wavelength (nm): 660.00 Beam Diameter (mm): 5 Beam Divergence (mrad): < 0.5 Color: Red Focus Range (mm): 35mm - ∞ Electrical Output Power (mW): 35 Power Stability (%): ±3 Hardware & Interface Connectivity Output Type: Free Space Connector: USB Micro B Input Voltage (V): 5 Environmental & Durability Factors Operating Temperature (°C): -10 to +65 Storage Temperature (°C): -10 to +80 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 240: Compliant ×
