3mm Aperture, Protected Silver, Compact 506 Dual Axis Galvanometer Scanner

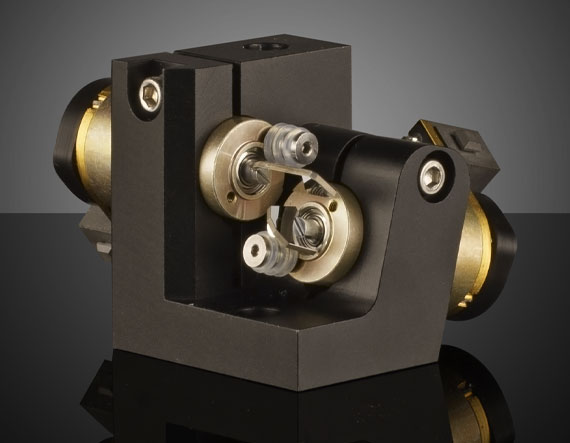

Product Details 3, 5, and 10mm Mirror Apertures Dual Axis Configuration with Protected Silver Coating Compact, Light-Weight, Low-Cost Scanners High Performance ScannerMAX Saturn Scanners Also Available ScannerMAX Compact 506 Dual Axis Galvanometer Optical Scanners are designed for cost-sensitive applications requiring compact, light-weight optical scanners that do not compromise on performance. The Compact 506 series features a sturdy rotor construction and low coil resistance, allowing these galvanometers to achieve reasonably fast scan speeds without producing excessive heat. The patented position sensor design provides these galvanometers with up to ten times the signal-to-noise ratio of conventional galvanometers, ensuring high quality motion. ScannerMAX Compact 506 Dual Axis Galvanometer Optical Scanners are ideal for use in stereo lithography (SLA) 3D printing, LiDAR, handheld medical devices, and laser cleaning applications. Optical scanners with a 3, 5, and 10mm mirror aperture are available with a protected silver coating; please contact us if your application requires a Compact 506 galvanometer scanner with a custom mirror aperture or coating. ScannerMAX Compact 506 Galvanometer Optical Scanners are driven by the Mach-DSP Servo Driver. This digital servo driver features a compact package size and simultaneously control both X-Axis and Y-Axis scanners. The Mach-DSP can be controlled by both analog and digital signals, and it can be accessed and adjusted using a free GUI software package, which includes a built-in test pattern generator, oscilloscope, and dynamic signal analyzer. The Mach-DSP Servo Driver requires ±24 VDC of power. Note: For European customers, 2 units of power supply #14-571 are required for operation. Various longer or shorter galvo to servo cables are available in the accessories tab. Please note that these cables are compatible with all Compact 506 Systems as well as the following list of Saturn Systems: Any Saturn 1 System (16-039 or 16-042) with Serial Numbers higher than PS102838 Any Saturn 5 System (16-040 or 16-043) with Serial Numbers higher than PS501904 Any Saturn 9 System (16-041, 16-044, 21-969) with Serial Numbers higher than PS903670 Each Compact 506 Dual Axis Galvanometer Optical Scanner ships with: 2 x Compact 506 Series Galvanometer 1 x X-Y Axis Mount 1 x Mach-DSP Servo Driver Board 2 x 1-meter-long cables that connect the galvanometer to the servo driver 1 x Cable kit including power and analog input cables Specifications General Type: Dual Axis Model Number: ScannerMAX Compact 506 Physical & Mechanical Properties Mirror Aperture (mm): 3 Dimensions (mm): 33.9 x 20.0 x 36.3 (of mount. Galvos protrude ~17mm) Rotor Inertia (gm-cm 2 ): 0.014 Torque Constant (dyne-cm/A): 18,400 Step Response 0.1° (μs): 150 Optical Properties Surface Flatness (P-V): ≤λ/4 @ 632.8nm Coating: Protected Silver Scan Angle (°): 60 (Optical) Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Silicon (Si) Electrical Position Signal (V): ±10 Current – Peak (A): Maximum: 10 Current – RMS (A): 1.85 (Case @ 50°C) Coil Resistance (Ω): 1.8 Coil Inductance (μH): 280 Back EMF Voltage (μV/°/s): 32.1 Hardware & Interface Connectivity Power Requirement: ±24 VDC Power Supply: 1 x #16-045 Europe (CE Marked): 2 x #14-571 Environmental & Durability Factors Operating Temperature (°C): 0 to +50 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × REACH 241: Compliant ×
